793353

Sigma-Aldrich

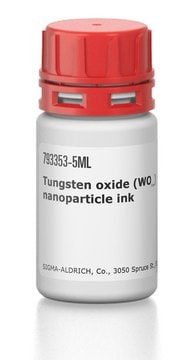

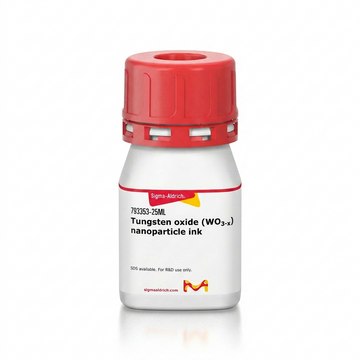

Tungsten oxide (WO3-x) nanoparticle ink

Sign Into View Organizational & Contract Pricing
All Photos(1)
Synonym(s):
Avantama P-10, Nanograde P-10, Tungsten oxide nanoparticle dispersion, Tungsten oxide suspension, WO3 dispersion, WO3 ink
Linear Formula:
WO3-x
NACRES:
NA.23

form

dispersion

Quality Level

100

concentration

2.5 wt. % in 2-propanol

particle size

<50 nm (BET)

density

0.7992 g/mL at 25 °C

Related Categories

General description

This WO3-x nanoparticle ink is for slot-dye, spin-coating and doctor blading for the use as hole transport layer in printed electronics. Tungsten oxide nanoparticle ink is a hole-selective interface layer ink based on a colloidal suspension of tungsten oxide (WO3) nanoparticles in isopropanol. The average size of WO3 particle is optimized around 12-16 nm. Tungsten oxide nanoparticle exhibits high work function, processability and easy layer formation on hydrophilic as well as hydrophobic substrates.This WO3-x nanoparticle ink is universally applicable in normal and inverted architecture solar cells.
Annealing temperature <100°C.

Application

WO3 nanoparticle ink can be applied in OPV cells as hole extraction layer (HEL) materials. Tungsten oxide nanoparticle ink can be mixed with PEDOT:PSS formulations in order to fine tune electronic and morphological dry layer properties (e.g. conductivity, surface roughness or layer porosity).

Other Notes

Prior to application: Ultrasonicate and (optionally) filter through 0.45 μm PTFE filter
Working conditions: Application and film drying under nitrogen (or low humidity)
Post-treatment: Annealing of deposited WO3-x films at 80°C - 120°C

Legal Information

Product of Avantama Ltd.

Pictograms

FlameExclamation mark
GHS02,GHS07

Signal Word

Danger

Hazard Statements

H225 - H319 - H336

Precautionary Statements

P210 - P305 + P351 + P338

Hazard Classifications

Eye Irrit. 2 - Flam. Liq. 2 - STOT SE 3

Target Organs

Central nervous system

Storage Class Code

3 - Flammable liquids

WGK

WGK 1

Flash Point(F)

53.6 °F - closed cup

Flash Point(C)

12 °C - closed cup

Regulatory Information

危险化学品
