901091

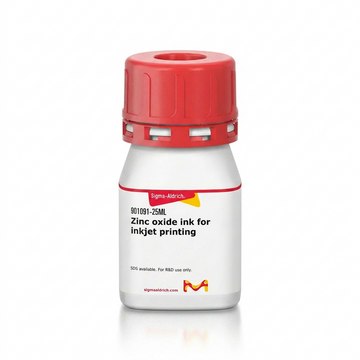

Zinc oxide ink for inkjet printing

greener alternative

Synonym(s):

Zinc oxide dispersion, Zinc oxide suspension, ZnO ink, ZnO nanoparticle ink, Helios′Ink S30NJET06034 semiconductive ink

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

Linear Formula:
ZnO
NACRES:
NA.23
UNSPSC Code:
12352303
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Quality Segment

100

description

Conductivity: 10-8-10-7 S/cm (before illumination) and 10-4-10-3 S/cm (under illumination with UV light), Valence band: 7.9 ± 0.1 eV, Work function: 4.0 ± 0.1 eV

form

liquid (dispersion)

greener alternative product characteristics

Design for Energy Efficiency
Learn more about the Principles of Green Chemistry.

sustainability

Greener Alternative Product

color

slightly yellow to clear

surface tension

29 mN/m±5 mN/m

viscosity

10.5 mPa.s±3.0 mPa.s(20 °C)

capacity

≥0.9 % loading (Nanoparticles loading)

greener alternative category

Enabling,

General description

Helios’InkS3ONJET06034, semi conductive ink developed for the printed electronics is particularly well suited for OPV and PV. Helios’Ink S3ONJET06034, semi conductive ink shows great performance on Drop on Demand (DOD) inkjet printers, blade coating, and spin coating and is compatible with various flexible substrates (polyimide, PET, PET/ITO, etc.) but also Glass/ITO.
We are committed to bringing you Greener Alternative Products, which adhere to one or more of The 12 Principles of Greener Chemistry. This product belongs to Enabling category of greener alternatives thus aligns with "Design for energy efficency". Click here for more information.

Features and Benefits

Product benefits:
  • Easy deposition under atmospheric conditions (temperature and pressure).
  • Good optical performances (visible light transmission >90%).
  • Non CMR ink.
  • Compatible with ITO layer and Ag NWs layer.
  • Compatible with most flexible substrates.
  • Low drying temperature making printing onto flexible substrates possible.
  • Thin layers are obtained (20 nm) with low roughness (RMS = 3±1 nm).

Preparation Note

Typical processing guideline:
  • Can be homogenized for 5 minutes in an ultrasonic bath in order to get rid of any aggregates.
  • Filtration on a 0.45 μm PTFE filter syringe to avoid any nozzles clogging.
  • Drying conditions: Oven, IR oven, vacuum oven.
  • Clean-up solution: Ethanol/Acetone.

Legal Information

Product of Genes′Ink.

signalword

Danger

Hazard Classifications

Acute Tox. 4 Oral - Aquatic Chronic 3 - Eye Dam. 1 - Flam. Liq. 3 - Skin Irrit. 2 - STOT SE 3

target_organs

Central nervous system, Respiratory system

Storage Class

3 - Flammable liquids

wgk

WGK 1

flash_point_f

111.2 °F - closed cup

flash_point_c

44 °C - closed cup
