921920

Straight channel chip (4 parallel channels)

Name: Straight channel chip (4 parallel channels)
Brand: ALDRICH

Fluidic 156, PMMA

Synonym(s):

Microfluidic chip

Select a Size

Change View

About This Item

NACRES:

NA.23

UNSPSC Code:

42142600

Technical Service

Need help? Our team of experienced scientists is here for you.

Let Us Assist

Properties

description

Microfludic chip x1

Description

Application

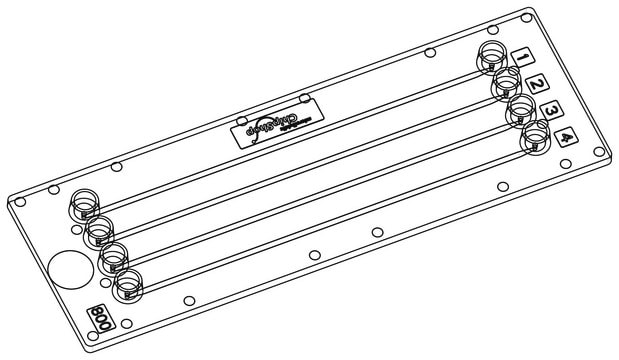

Straight channel chip (4 parallel channels), Fluidic 156, PMMA is the same dimensions of a microscope slide (75.5 mm x 25.5 mm x 1.5 mm). The channel distance from center to center is 4.5 mm according to the spacing of a 384-microtiter plate. The fluidic chips are available with Mini Luer interfaces that can be used with the respective counterpart. Alternatively, standard Luer interfaces are convenient. Channels can be orientated crosswise or lengthwise on the chip.

Chip Properties:

4 parallel channels
Mini Luer Interface
Material: Poly(methyl methacrylate) (PMMA)
Slide Dimensions: 75.5 mm x 25.5 mm x 1.5 mm
Channel to channel distance: 4.5mm
Channel Dimensions: 200μm (width) x 200μm (depth) x 58.5mm (length)

Still not finding the right product?

Explore all of our products under Straight channel chip (4 parallel channels)

Regulatory Information

新产品

This item has

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number

It looks like we've run into a problem, but you can still download Certificates of Analysis from our Documents section.

If you need assistance, please contact Customer Support

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Microfluidic-assisted fabrication of carriers for controlled drug delivery.

Santos H A, et al

Lab on a chip, 17, 1856-1883 (2017)

Recent advances of controlled drug delivery using microfluidic platforms.

Li X, et al.

Advanced Drug Delivery Reviews, 128, 3-28 (2018)
