Z271314

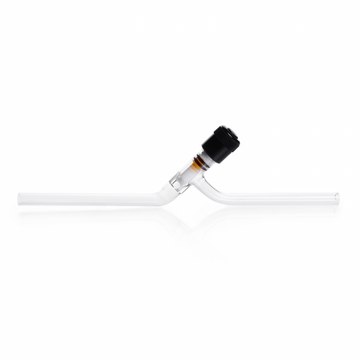

HI-VAC® vacuum valves

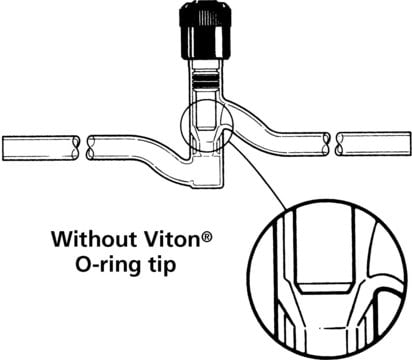

Bent side-arm, O-ring tip: no, bore 0-4 mm
Synonym(s):
826620-0004, HI-VAC, bore, connector, fitting, plug, valve
Sign In to View Organizational & Contract Pricing.
Select a Size
Change View
About This Item
NACRES:
NB.79
UNSPSC Code:
40141600
feature
O-ring tip: no
manufacturer/tradename
DWK Life Sciences Kimble®
bore
0-4 mm
stem diam.
9 mm
General description
Precision external thread for fine control. Valves may be used as a bleed up to 1/2 turn. Full open position is at 11/2 turns.
- For high-vacuum applications up to 5 × 10-7 torr
- Continuous use at 230°C or intermittently at 275°C
- Nonrotating PTFE shaft with PTFE wipers
- Viton® O-rings
Features and Benefits
- Manufactured from borosilicate glass 3.3
- The sidearms of this high-vacuum valve are bent to minimize liquid holdup that would occur in conventional valves.
- PTFE shaft seals protect the FKM O-Rings from contact with the system
- Seal design reduces outgassing
- Designed with a precision external thread for fine control
- Can be used as a bleed up to 1/2 turn
- Full open position is at 1-1/2 turns
- Primary seal is made with a FKM O-Ring on a tapered seat
- Non-rotating PTFE shaft
Legal Information
HI-VAC is a registered trademark of Kimble Kontes Asset Mgmt. Inc.
KIMBLE is a registered trademark of DWK Life Sciences
Viton is a registered trademark of E. I. du Pont de Nemours and Company
