Z562610

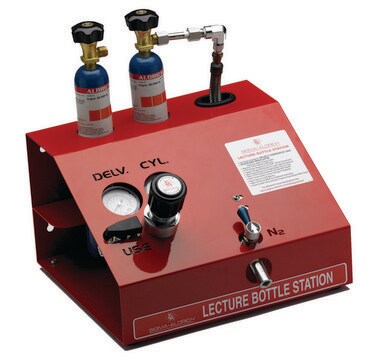

Aldrich® lecture-bottle station
for mildly corrosive gases
inlet CGA
180
Looking for similar products? Visit Product Comparison Guide
General description
Regulator specifications:
Single stage, panel-mounted stainless steel body and pressure diaphragm, cartridge type seat PCTFE, PTFE and PCTFE seals, self seating type relief valve, 2 inch diameter stainless steel gauges, helium leak rate tested at 1 x 10-8 ssc/sec., 3000 psig maximum inlet pressure, 0-80 psig delivery range, Stainless steel outlet needle valve with 1/4 in. NPTF connection.
T-Purge valve specifications: 316L stainless steel body and diaphragm-seal valve, 3000 psig maximum inlet pressure, inlet check-valve, with 1/4 in. NPTF connection.
Just connect the station to the lecture-bottle, process, and a source of inert gas, if using a station with a purge valve, and you are ready to go.
Safe and Simple:
- Gas dispensing and storage in one compact, portable system
- Keeps lecture-bottles upright and stable, eliminates tip-over
- Reduces equipment damage and chance of personal injury
- Choice of four models matched to the application
- Online Lecture-Bottle Equipment to Gases Selection Guide
Station Specifications:
1. Heavy-gauge steel cabinet with durable, red enamel finish, table-top or wall mountable
2. Quality, panel-mounted regulators and purge valves
3. Braided, 316L stainless steel hose with CGA-180 remote connection to the lecture-bottle
4. Support for two lecture-bottles, one in use and a spare
5. Clearly labeled gauges, gas connections, and valve functions
6. Instructions for Use label on front of cabinet
7. Fully assembled, leak-tested and ready for use
