SAFTA25NB6

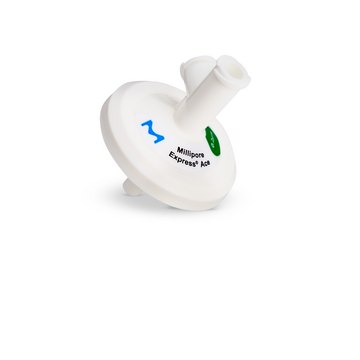

Millipore Express® Ace 0.2µm, Optiscale® 25mm Capsule

greener alternative

Fittings NB, Autoclavable

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Quality Segment

400

material

polyethersulfone membrane (hydrophilic), polypropylene (structural components), polypropylene support, polypropylene vent cap

reg. compliance

meets FDA Indirect Food Additive requirements cited in CFR 177-182 (all component materials)

sterility

non-sterile

sterilization compatibility

autoclavable compatible

product line

Millipore Express®

feature

hydrophilic

sustainability

Greener Alternative Product

parameter

0 mbar max. differential pressure (0 psi) (Reverse), 4100 mbar max. differential pressure (60 psi) at 25 °C (Forward)

technique(s)

sterile filtration: suitable

D

31 mm (1.21 in.)

L

39 mm (1.52 in.)

filtration area

3.5 cm2

impurities

<0.25 EU/mL USP bacterial endotoxins (LAL test, sample aqueous extraction)

matrix

Millipore Express® Ace

pore size

0.2 μm pore size

cartridge code

Code 7

greener alternative category

DfS-Developed

General description

Device Configuration: Capsule
We are committed to bringing you Greener Alternative Products. This product is a Design for Sustainability (DfS) developed product, which belongs to one of the four categories of greener alternatives. Click here to view its DfS scorecard.

Application

Millipore Express® Ace 0.2 µm filters deliver exceptional sterile filtration performance for a wide range of bioprocessing applications. These filters contain a cutting edge, single-layer, hydrophilic polyethersulfone (PES) sterilizing-grade membrane that delivers unmatched flux and throughput.

This innovative membrane design means more membrane area for standard filter formats, resulting in exceptional filtration capacity with minimal footprint.

Features and Benefits

  • High-capacity single layer membrane reducing the required membrane area
  • Non cytotoxic to cells for upstream applications
  • Easily wets to facilitate integrity testing
  • High yields achieved due to low protein binding surface chemistry
  • Made with non-per- and polyfluoroalkyl substances (PFAS) materials for enhanced sustainability
  • Broad chemical compatibility making it suitable for use with ADCs

Packaging

Double Easy-Open bag

Analysis Note

Bacterial Retention
Samples were quantitatively retentive of a minimum Brevundimonas diminuta challenge concentration of 1 x 107 CFU/cm² using ASTM® F838 methodology.

TOC/Conductivity
Irradiated filter effluent meets the WFI requirements of USP <643> for Total Organic Carbon and USP <645> for Water Conductivity after a water flush of: 3 L.

Other Notes

Directions for Use

  • Mode of Action: Filtration (size exclusion).
  • Application: BioProcessing.
  • Instructions for Use: Please refer to the OptiScale® 25 User Guide.
  • Storage Statement: Please refer to the OptiScale® 25 User Guide.
  • Disposal Statement: Dispose of in accordance with applicable federal, state and local regulations.
These products are manufactured in a facility which adheres to FDA Good Manufacturing Practices.
