09969

SQ-NHS

Name: SQ-NHS
Brand: SIGMA

suitable for fluorescence, >50% (coupling to amines)

Synonym(s):

Squarain-carboxylate N-succinimidyl ester

Select a Size

Change View

About This Item

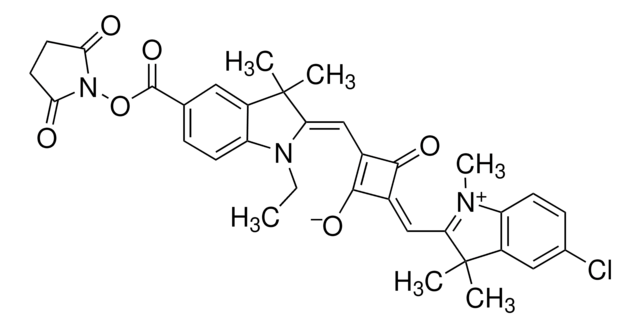

Empirical Formula (Hill Notation):

C₃₄H₃₂ClN₃O₆

CAS Number:

154161-81-6

Molecular Weight:

614.09

NACRES:

NA.32

UNSPSC Code:

12352200

MDL number:

MFCD03792601

Technical Service

Need help? Our team of experienced scientists is here for you.

Let Us Assist

Properties

Quality Segment

100

assay

>50% (coupling to amines)

solubility

DMF: soluble

fluorescence

λ_ex 600 nm; λ_em 645 nm in 0.1 M phosphate pH 7.0

suitability

suitable for fluorescence

storage temp.

2-8°C

InChI

1S/C34H32ClN3O6/c1-7-37-25-10-8-18(32(43)44-38-28(39)12-13-29(38)40)14-22(25)34(4,5)27(37)17-21-30(41)20(31(21)42)16-26-33(2,3)23-15-19(35)9-11-24(23)36(26)6/h8-11,14-17H,7,12-13H2,1-6H3

InChI key

RRLJXAKQFSXTLC-UHFFFAOYSA-N

Description

Application

SQ-NHS contains a reactive N-hydroxysuccinimide group, which allows for coupling with amino groups. When conjugated with proteins, SQ-NHS demonstrates a high quantum yield with an absorption maximum at 640 nm and a nanosecond lifetime. Additionally, in the physiological pH range (6-9), the absorbance, emission, and lifetime of SQ-NHS are pH-independent. It is water insoluble .

Storage Class

13 - Non Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

Eyeshields, Gloves, type N95 (US)
