77810

Atto 520 NHS ester

BioReagent, suitable for fluorescence, ≥90% (HPLC)

Sign In to View Organizational & Contract Pricing.

Select a Size

About This Item

Empirical Formula (Hill Notation):
C26H30ClN3O9
Molecular Weight:
563.98
NACRES:
NA.32
PubChem Substance ID:
57652713
UNSPSC Code:
12352200
MDL number:
MFCD03456129

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Product Name

Atto 520 NHS ester, BioReagent, suitable for fluorescence, ≥90% (HPLC)

InChI key

HVCUIKJJDQLPQR-AYYDQZPKSA-N

SMILES string

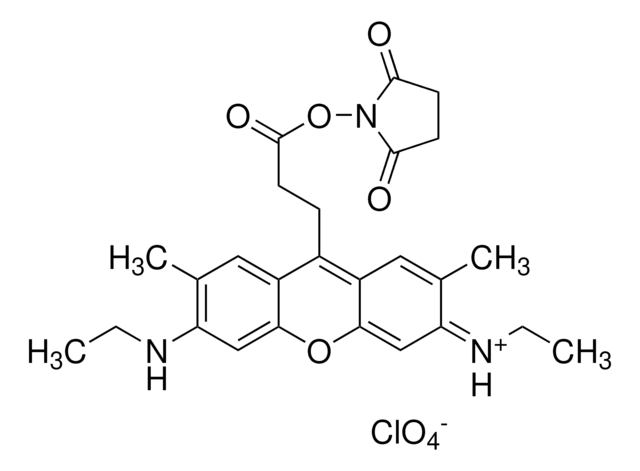

[O-]Cl(=O)(=O)=O.CCNc1cc2OC3=CC(=[NH+]\CC)\C(C)=CC3=C(CCC(=O)ON4C(=O)CCC4=O)c2cc1C

InChI

1S/C26H29N3O5.ClHO4/c1-5-27-20-13-22-18(11-15(20)3)17(7-10-26(32)34-29-24(30)8-9-25(29)31)19-12-16(4)21(28-6-2)14-23(19)33-22;2-1(3,4)5/h11-14,27H,5-10H2,1-4H3;(H,2,3,4,5)/b28-21-;

product line

BioReagent

assay

≥90% (HPLC)
≥90% (degree of coupling)

form

powder

manufacturer/tradename

ATTO-TEC GmbH

λ

in ethanol (with 0.1% trifluoroacetic acid)

UV absorption

λ: 526-532 nm Amax

suitability

suitable for fluorescence

detection method

fluorometric

storage temp.

−20°C

Looking for similar products? Visit Product Comparison Guide

Application

Molar absorption 110,000 1/M cm, abs: 521 nm, em: 548 nm, QY=0.9, Tfl 3.8 ns
abs.: λmax 515 nm; em.: λmax 526 nm

Legal Information

This product is for Research use only. In case of intended commercialization, please contact the IP-holder (ATTO-TEC GmbH, Germany) for licensing.

Storage Class

13 - Non Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

Eyeshields, Gloves, type N95 (US)

Regulatory Information

新产品
This item has

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
BCCJ3568
BCCJ0132
BCCH8477
BCCH4091
BCCH3002

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Manoj Kumbhakar et al.
Chemphyschem : a European journal of chemical physics and physical chemistry, 10(4), 629-633 (2009-01-30)
Complex dynamics of combined long-range fluorescence resonance energy transfer (FRET) and short-range electron transfer (ET) processes in a single double-stranded DNA (dsDNA) molecule (see figure) reveals that FRET remains almost unaltered in the presence of ET. Present systems also demonstrate
Hee-Jin Jeong et al.
Biosensors & bioelectronics, 40(1), 17-23 (2012-07-17)
Protein phosphorylation is a key event in intracellular signal transduction, and fluorescent biosensor for the specific phosphorylation event in a target protein is considered highly useful as a tool of cellular biology and drug screening. Vimentin, the most abundant intermediate
Vladimir Mekler et al.
The Journal of biological chemistry, 286(1), 270-279 (2010-10-19)
Promoter recognition by RNA polymerase is a key point in gene expression and a target of regulation. Bacterial RNA polymerase binds promoters in the form of the holoenzyme, with the σ specificity subunit being primarily responsible for promoter recognition. Free
Siddharth Nanguneri et al.
PloS one, 7(5), e38098-e38098 (2012-06-05)
Three-dimensional fluorescence imaging of thick tissue samples with near-molecular resolution remains a fundamental challenge in the life sciences. To tackle this, we developed tomoSTORM, an approach combining single-molecule localization-based super-resolution microscopy with array tomography of structurally intact brain tissue. Consecutive
Christopher A Teske et al.
The journal of physical chemistry. B, 109(28), 13811-13817 (2006-07-21)
Confocal laser scanning microscopy (CLSM) is being increasingly used for observing protein uptake in porous chromatography resins. Recent CLSM studies have revealed the possible existence of a nondiffusive protein transport mechanism. Observing protein uptake with CLSM requires labeling the protein
