description
Microfludic chip x1
Application

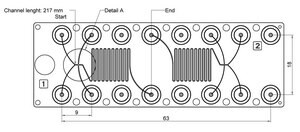

- Two identical micromixing units per chip
- Each unit feature four inlets and one outlet
- The micromixing units can be daisy chained to further improve mixing
The Diffusion Mixer Fluidic 186 PC microfluidic chip applies passive mixing principles and elongated channels to enforce mixing. Though flows in microchannels are normally laminar, this mixer improves diffusion through a long co-flow of liquids in an elongated meandering channel.
Other Notes
Chip Properties:
- Luer Interface
- Material: Polycarbonate (PC)
- Channel Depth: 100 μm
- Channel Width Inlets: 100/200 μm
- Channel Width Mixer: 200 μm
- Channel Width Outlet: 200 μm
- Volume Mixing Channel: 4.11 μL
- Length of mixing channel: 217 mm
