feature
CE compliant, 1 ramp with 10 segments
manufacturer/tradename
P1-C25P
availability
not available in USA and Canada
parameter
−28-150 °C temperature, 0.01 °C temp. stability, 22 L/min suction pressure (380 mbar), 24 L/min pump flow (560 mbar)
cooling capacity
300 W, at 20 °C
heater capacity
2.0 kw
L × W × H
260 mm × 480 mm × 630 mm, overall
bath opening L × W × H
130 mm × 100 mm × 150 mm
bath volume
4.5 L
General description

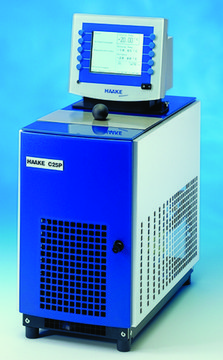

These refrigerated circulators of the Phoenix-line are designed for replacing tap water cooling or for working at low temperatures. The units are used for temperature controlling external open and closed liquid circuits. The extreme stable Fuzzystar® system with neuronal adaptation in combination with energy management provides the correct temperatures for the connected system and very good temperature accuracy. All units are equipped with large LCD-display, RS232C interface and multifunctional port, 4 saveable fixed temperatures, permanent display of date and time and internal programmer for temperature ramp programs.
