Merck
CN

Z617644

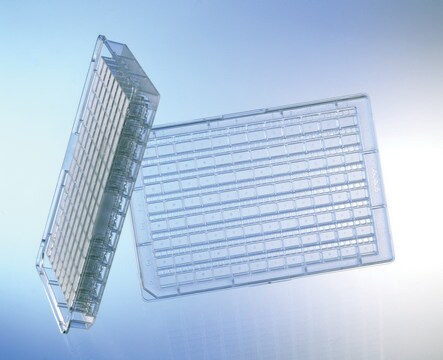

Greiner CrystalQuick® 96 well plates for protein crystallization

flat bottom clear wells

别名:

96 multiwell plates, 96 well microplates, 96 well microtiter plates, 96 well strip plates, Greiner 609101

登录 查看组织和合同定价。

选择尺寸

关于此项目

NACRES:
NB.22
UNSPSC Code:
41122107
Material:
clear polystyrene , flat bottom clear wells
Size:
96 wells
Sterility:
non-sterile
Feature:
lid: no

主要文件

查看所有文档
技术服务
需要帮助？我们经验丰富的科学家团队随时乐意为您服务。
让我们为您提供帮助
技术服务
需要帮助？我们经验丰富的科学家团队随时乐意为您服务。
让我们为您提供帮助

material

clear polystyrene , flat bottom clear wells

sterility

non-sterile

feature

lid: no

packaging

case of 40

manufacturer/tradename

Greiner 609101

L × W × H

128 mm × 85.5 mm × 14.4 mm

maximum volume

4.1 μL

size

96 wells

working volume

320 μL

color

clear

General description

  • Plate is optimized for the sitting drop application
  • 96 reservoirs with flat bottom, 320 μL each
  • 288 round crystallisation wells, 1.9 μL each
  • Hanging drop application possible in combination with the CrystalDrop lid
CrystalQuick® 96W Microplate, Low Birefringence, maximum well volume 4.1 μL; maximum reservoir volume 320 μL.

Application

Crystallization plates for sitting drop applications, suitable for automatised applications.

Other Notes

96 flat well microplate, without Lid, square well design, flat bottom, 3 wells per reservoir, standard material properties, length: 127.76+/- 0.15 mm width: 85.48 +/- 0.15 mm curvature: approx.200 μm.

Legal Information

CrystalQuick is a registered trademark of Greiner Bio-One GmbH
