5C44

Millipore

NovaSeptum® GO Conical Tube Sampling Unit, Manifold (5-valve) with Inlet C-Flex® Tubing

sterile; γ-irradiated, volume × volume 15 mL × 50 mL

登录查看公司和协议定价
所有图片(1)

物料

TPE tubing (Inlet C-Flex)
polycarbonate Luer lock
polypropylene clip (TTP clip)
polypropylene tube (Fluid contact layer (conical tube))
polystyrene tube (Fluid contact layer (conical tube))
tubing (Female and male Luer-Lok®)

质量水平

400

Agency

according to ISO 11137 (sterilization)
according to ISO Clean Room Class 8 conditions in a facility
certified by the ISO 14644-1 standards
meets USP 88 biological reactivity (all component materials)

无菌性

sterile; γ-irradiated

产品线

NovaSeptum® GO

特点

autoclavable: no

参数

max. pressure at 0.50 bar (7.25 psi)
2-60 °C temp. range (36-140 °F)

体积 × 体积

15 mL × 50 mL

应用

cell therapy
gene therapy
life science and biopharma
mAb
ophthalmics
parenterals
pharma/biopharma processes
sterile sampling
viral therapy

储存温度

2-30°C

相关类别

一般描述

Device configuration: single Unit Sampling

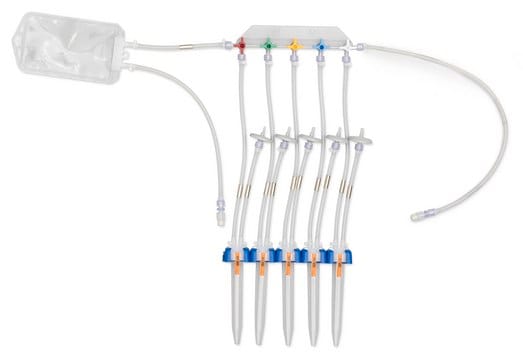

NovaSeptum® GO Conical Tube Sampling Unit, Manifold (5-valve) with Inlet C-Flex® Tubing are small volume sampling containers that fit our established NovaSeptum® GO sampling system. These sampling containers are available in two sizes: 15 mL polystyrene tubes ideal for endotoxin testing, and 50 mL polypropylene tubes for bioburden and other physico-chemical tests. These conical tubes provide flexibility to manufacturers for sampling at any point in the production process eliminating the need to aliquot.

When used in a single-use manufacturing process, a weldable option with C-Flex® tubing is available.

The NovaSeptum® GO Conical Tube Sampling Unit offers you flexibility while minimizing the risk of both product and process contamination.

应用

Sterility testing, pyrogenic testing, endotoxin testing, chemical analysis, pH analysis, fermentation applications or any other routine lab testing
supported liquid extraction

特点和优势

Fluid contact layer made of polystyrene, ideal for endotoxin testingSmall size, no need to aliquot, Manifold Format, C-Flex inlet weldable

包装

8 units per box

组分

Luer: Polycarbonate

Fluid contact layer (conical tube): Polystyrene (15mL) and Polypropylene (50mL), dip tube: LDPE (Low density polyethylene pharmalene FL20PH)

TTP clip Polypropylène (15mL only)

Tubing: Thermoplastic elastomer (TPE), Inlet C-Flex

Outlet Tubing: Female and male Luer-Lok®

法律信息

C-Flex is a registered trademark of Concept Polymer Technologies Inc.
Luer-Lok is a registered trademark of Becton-Dickinson & Co.
NOVASEPTUM is a registered trademark of Merck KGaA, Darmstadt, Germany
