643742

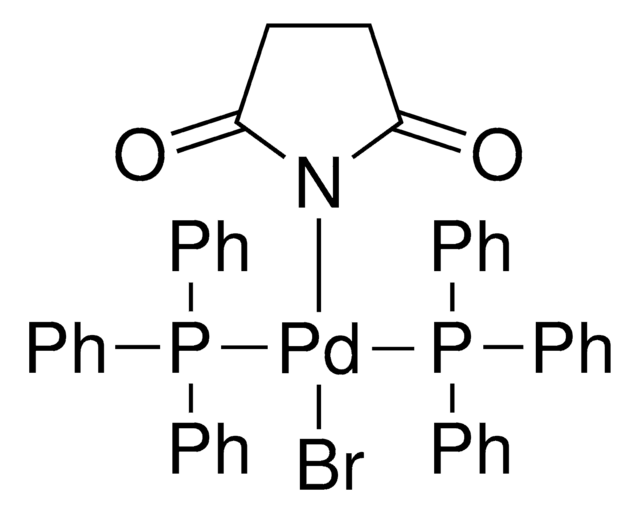

trans-Bromo(N-succinimidyl)bis(triphenylphosphine)palladium(II)

97%

Synonym(s):

Bromobis(triphenylphosphine)(N-succinimide)palladium(II), [Pd(NCOC2H4CO)(PPh3)2Br]

Sign In to View Organizational & Contract Pricing.

Select a Size

About This Item

Empirical Formula (Hill Notation):
C40H34BrNO2P2Pd
CAS Number:
251567-28-9
Molecular Weight:
808.98
NACRES:
NA.22
PubChem Substance ID:
24883292
UNSPSC Code:
12352300
MDL number:
MFCD06411335

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

InChI

1S/2C18H15P.C4H5NO2.BrH.Pd/c2*1-4-10-16(11-5-1)19(17-12-6-2-7-13-17)18-14-8-3-9-15-18;6-3-1-2-4(7)5-3;;/h2*1-15H;1-2H2,(H,5,6,7);1H;/q;;;;+2/p-2

SMILES string

Br[Pd]N1C(=O)CCC1=O.c2ccc(cc2)P(c3ccccc3)c4ccccc4.c5ccc(cc5)P(c6ccccc6)c7ccccc7

InChI key

KYQYWUJRFOCJEW-UHFFFAOYSA-L

assay

97%

form

solid

reaction suitability

core: palladium, reaction type: Buchwald-Hartwig Cross Coupling Reaction, reaction type: Cross Couplings, reaction type: Heck Reaction, reaction type: Hiyama Coupling, reaction type: Negishi Coupling, reaction type: Sonogashira Coupling, reaction type: Stille Coupling, reaction type: Suzuki-Miyaura Coupling, reagent type: catalyst

mp

223-228 °C (dec.) (lit.)

Application

trans-Bromo(N-succinimidyl)bis(triphenylphosphine)palladium(II) may be used in the following processes:
  • As a catalyst for the preparation of 6-cyano-2-(3-fluoro-benzyl)-indole-1-carboxylic acid tert-butyl ester via Suzuki cross-coupling reaction between 1-boc-6-cyanoindole-2-boronic acid and 3-fluorobenzyl bromide. This method does not involve the use of strong bases or toxic reagents and also the use of this catalyst minimizes protodeboronation.
  • As a precatalyst for the Suzuki-Miyaura cross-coupling reaction between alkenyl tosylates and alkenyl MIDA boronates in the absence of phosphine ligands. For less activated alkenyl tosylate, the addition of tricyclohexylphosphine tetrafluoroborate improves the reactivity.
Catalyst for C-C bond formation, e.g. Stille coupling reaction and Suzuki coupling.

Storage Class

13 - Non Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

Eyeshields, Gloves, type N95 (US)

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
SHBF4964V
SHBF0172V
SHBB9952V
59496EK
92096TJ

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Suzuki-Miyaura cross-coupling of alkenyl tosylates with alkenyl MIDA boronates.
Luthy M and Taylor RJK.
Tetrahedron Letters, 53(27), 3444-3447 (2012)
Michael J Burns et al.
Organic letters, 9(26), 5397-5400 (2007-12-01)
trans-PdBr(N-Succ)(PPh3)2 (1) is a universally effective precatalyst for Suzuki-Miyaura cross-couplings of benzylic halides with aryl- or heteroarylboronic acids. Substituted aryl halides and halogenated cyclic enones can be cross-coupled with aryl- or vinylboronic acids in excellent yields. Catalyst recycling is also
Palladium-catalyzed benzylation of N-Boc indole boronic acids.
Kearney AM, et al.
Tetrahedron Letters, 51(17), 2281-2283 (2010)
