768634

Zirconium(IV) 2-ethylhexanoate in mineral spirits

~6% Zr basis

Synonym(s):

Zirconium octoate

Sign In to View Organizational & Contract Pricing.

Select a Size

About This Item

Linear Formula:

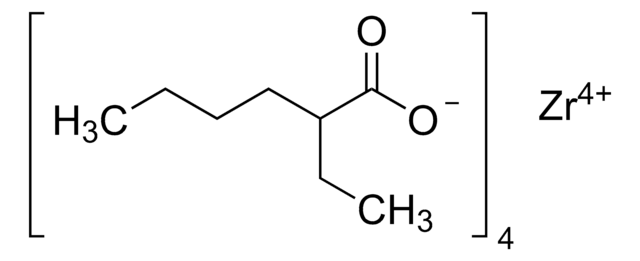

Zr(C8H15O2)4
NACRES:
NA.23
PubChem Substance ID:
329767390
UNSPSC Code:
12352103
MDL number:
MFCD00072684

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

InChI

1S/4C8H16O2.Zr/c4*1-3-5-6-7(4-2)8(9)10;/h4*7H,3-6H2,1-2H3,(H,9,10);/q;;;;+4/p-4

SMILES string

CCCCC(CC)C(=O)O[Zr](OC(=O)C(CC)CCCC)(OC(=O)C(CC)CCCC)OC(=O)C(CC)CCCC

InChI key

OFYFURKXMHQOGG-UHFFFAOYSA-J

form

liquid

reaction suitability

core: zirconium

concentration

~6% Zr

refractive index

n20/D 1.446

bp

167-178 °C/760 mmHg

density

0.870 g/mL at 25 °C

Application

Zirconium 2-ethylhexanoate is a metal organic precursor of zirconium for solution deposition and chemical vapor deposition of thin films containing zirconium; example: zirconium oxide thin films; yttria stabilized zirconia films for solid oxide fuel cells.

signalword

Danger

Hazard Classifications

Eye Irrit. 2 - Flam. Liq. 3 - Repr. 1B - Skin Irrit. 2

Storage Class

3 - Flammable liquids

wgk

WGK 3

flash_point_f

115.0 °F - closed cup

flash_point_c

46.1 °C - closed cup

Regulatory Information

危险化学品
This item has

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
MKCR1431
MKCR1524
MKCH9270
MKCC0056
MKBZ9744V

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Miyamoto;
Applied Surface Science, 197-198, 398-398 (2002)
Stollberg; D. W.;
Thin Solid Films, 483(1-2), 211-211 (2005)
