793256

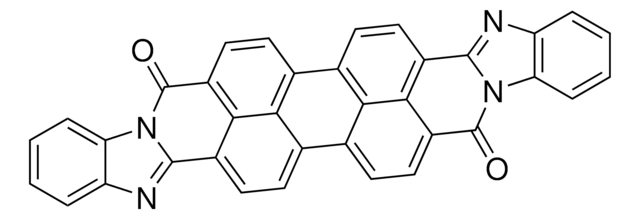

Bisbenzimidazo[2,1-a:2′,1′-a′]anthra[2,1,9-def:6,5,10-d′e′f′]diisoquinoline-10,21-dione

97%

Synonym(s):

Bisbenzimidazo[2,1-a:2′,1′-a′]anthra[2,1,9-def:6,5,10-d′e′f′]diisoquinoline-10,21-dione, N,N′-Diphenylglyoxaline-3,4,9,10-perylenetetracarboxylic acid diacidamide, PTCBI

Sign In to View Organizational & Contract Pricing.

Select a Size

About This Item

Empirical Formula (Hill Notation):
C36H16N4O2
CAS Number:
55034-79-2
Molecular Weight:
536.54
UNSPSC Code:
12352103
PubChem Substance ID:
329768408
MDL number:
MFCD00167037

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

InChI

1S/C36H16N4O2/c41-35-23-15-11-19-18-10-14-22-32-24(36(42)40-28-8-4-2-6-26(28)38-34(22)40)16-12-20(30(18)32)17-9-13-21(31(23)29(17)19)33-37-25-5-1-3-7-27(25)39(33)35/h1-16H

SMILES string

O=C1C2=C3C(C4=NC5=CC=CC=C5N41)=CC=C(C6=CC=C(C(N7C8=NC9=C7C=CC=C9)=O)C%10=C8C=CC%11=C6%10)C3=C%11C=C2

InChI key

CNXXSKARMYGQBG-UHFFFAOYSA-N

assay

97%

form

solid

mp

>300 °C

Quality Level

100

Application

Excellent materials as electron accepting building blocks for organic photovoltaics (OPVs); organic field effect transistors (OFETs); organic photoconductive sensors and organic electroluminescent cells.

pictograms

Exclamation mark
GHS07

signalword

Warning

Hazard Classifications

Eye Irrit. 2 - Skin Irrit. 2 - STOT SE 3

target_organs

Respiratory system

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
MKBT8286V

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Peter Peumans et al.
Nature, 425(6954), 158-162 (2003-09-12)
The power conversion efficiency of small-molecular-weight and polymer organic photovoltaic cells has increased steadily over the past decade. This progress is chiefly attributable to the introduction of the donor-acceptor heterojunction that functions as a dissociation site for the strongly bound
Influence of Dielectric Surface Chemistry on the Microstructure and Carrier Mobility of an n-Type Organic Semiconductor
Dhagat et al.
Advances in Functional Materials, 19(15), 2365-2372 (2009)
