900413

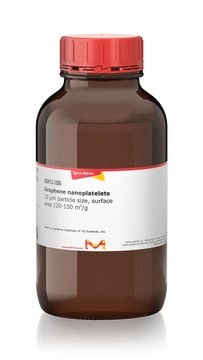

Graphene nanoplatelets
Sign In to View Organizational & Contract Pricing.
Select a Size
About This Item
Empirical Formula (Hill Notation):
C
CAS Number:
Molecular Weight:
12.01
MDL number:
UNSPSC Code:
12141908
EC Number:
231-955-3
NACRES:
NA.23
SMILES string
[C]
InChI key
OKTJSMMVPCPJKN-UHFFFAOYSA-N
InChI
1S/C
description
residual acid content: < 0.5 wt%
form
powder
composition
oxygen content, <1%
Quality Level
greener alternative product characteristics
Design for Energy Efficiency
Learn more about the Principles of Green Chemistry.
sustainability
Greener Alternative Product
surface area
120-150 m2/g
thickness
6-8 nm , average
bulk density
0.03‑0.1 g/cm3
greener alternative category
Looking for similar products? Visit Product Comparison Guide
Related Categories
Application
- Ultracapacitor electrodes.
- Anode materials for lithium-ion batteries.
- Conductive additive for battery electrodes.
- Electrically conductive inks.
- Thermally conductive films and coatings.
- Additive for lightweight composites.
- Films or coatings for EMI shielding.
- Substrate for chemical and biochemical sensors.
- Barrier material for packaging.
- Additive for super-strong concrete.
- Additive for metal-matrix composites.
General description
These graphene nanoplatelets can enhance mechanical properties such as stiffness, strength, and surface hardness of the matrix material. They are compatible with nearly all polymers and can serve as an active ingredient in inks or coatings, as well as an excellent additive for various types of plastics. The manufacturing processes used are non-oxidizing, resulting in a pristine graphitic surface composed of sp² carbon molecules, making them particularly suitable for applications that require high electrical or thermal conductivity. The particles have an average thickness of approximately 6-8 nanometers and a typical surface area of 120 to 150 m²/g.
Other Notes
Graphene nanoplatelets have naturally occurring functional groups like ethers, carboxyls, or hydroxyls that can react with atmospheric humidity to form acids or other compounds. These functional groups are present on the edges of the particles and their wt% varies with particle size.
Features and Benefits
We are committed to bringing you Greener Alternative Products that adhere to one of the four categories of Greener Alternatives. Graphene Nanoplatelets (GNPs) enhance lithium-ion battery performance by increasing reversible capacity and improving charge rates, while their high specific surface area supports efficient lithium ion transport. Click here for more information.
Storage Class
11 - Combustible Solids
wgk
WGK 1
flash_point_f
Not applicable
flash_point_c
Not applicable
Choose from one of the most recent versions:
Already Own This Product?
Find documentation for the products that you have recently purchased in the Document Library.
Performance dependence of thermosyphon on the functionalization approaches: An experimental study on thermo-physical properties of graphene nanoplatelet-based water nanofluids.
Amiri A, et al.
Energy Conversion and Management , 92, 322-330 (2015)
Mechanical properties of graphene nanoplatelet/epoxy composites.
King JA, et al.
Journal of Composite Materials, 49(6), 659-668 (2015)
Articles
Advances in scalable synthesis and processing of two-dimensional materials
Our team of scientists has experience in all areas of research including Life Science, Material Science, Chemical Synthesis, Chromatography, Analytical and many others.
Contact Technical Service
