901871

PBDTS-TDZ

Synonym(s):

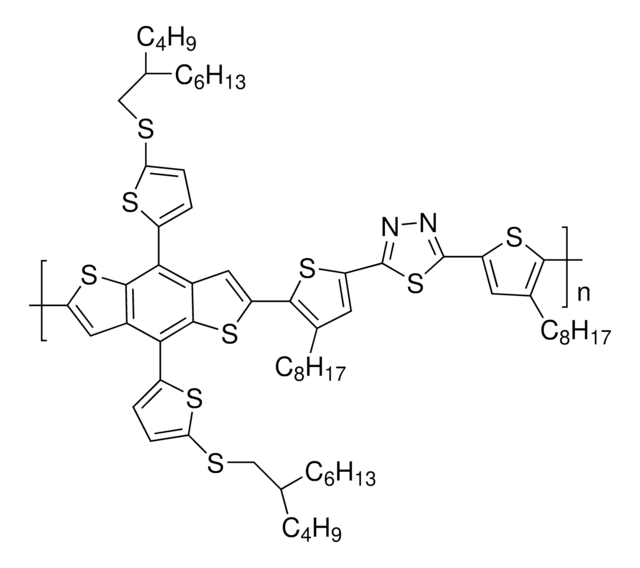

PCE-13, PCE13, Poly[1,3,4-thiadiazole-2,5-diyl(3-octyl-2,5-thiophenediyl)[4,8-bis[(2-butyloctyl)thio]benzo[1,2-b:4, 5-b′]dithiophene-2,6-diyl](4-octyl-2,5-thiophenediyl)]

Sign In to View Organizational & Contract Pricing.

Select a Size

About This Item

Linear Formula:
[C68H92N2S9]n
NACRES:
NA.23
UNSPSC Code:
12162002

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

description

Band gap: 2.09 eV

form

powder

mol wt

average Mn >30000, average Mw >60000

solubility

THF: soluble, chlorobenzene: soluble, chloroform: soluble, dichlorobenzene: soluble, soluble (1,2,4-trimethylbenzene), toluene: soluble, xylene: soluble

λmax

510 nm±10 nm (Solution)

orbital energy

HOMO -5.39 eV , LUMO -2.8 eV

PDI

<2.5

Related Categories

Application

PBDTS-TDZ is a wide bandgap polymer that can be used as a donor for the fabrication of organic solar cells. It has alkylthio side chains, which help in strong optical absorption and high crystallinity. PBDTS-TDZ forms a composite with ITIC, which has an efficiency of ~18% for organic tandem solar cells.

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
MKCG6497

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Organic tandem solar cells with 18.6\% efficiency
Salim MB, et al.
Solar Energy, 198, 160-166 (2020)
Green-solvent-processable strategies for achieving large-scale manufacture of organic photovoltaics
Ma Z, et al.
Journal of Material Chemistry A, 7(40), 22826-22847 (2019)
Xiaopeng Xu et al.
Advanced materials (Deerfield Beach, Fla.), 30(3) (2017-12-07)
Two novel wide-bandgap copolymers, PBDT-TDZ and PBDTS-TDZ, are developed based on 1,3,4-thiadiazole (TDZ) and benzo[1,2-b:4,5-b']dithiophene (BDT) building blocks. These copolymers exhibit wide bandgaps over 2.07 eV and low-lying highest occupied molecular orbital (HOMO) levels below -5.35 eV, which match well

Articles

Progress for High Performance Tandem Organic Solar Cells

Professor Chen (Nankai University, China) and his team explain the strategies behind their recent record-breaking organic solar cells, reaching a power conversion efficiency of 17.3%.
