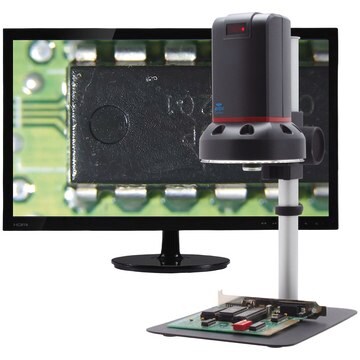

Aven Digital Microscope Cyclops

This innovative digital microscope features built-in HDMI and USB outputs with 4x objective lens, and allows operators to view images on a monitor, or on a PC utilizing advanced measurement and imaging software. Save images directly to a MicroSD card in HDMI mode, or to your computer in PC mode.

• 13x - 140 x magnification (based on a 24" monitor)
• Working Distance: 0.86 inch - 8.42 inch
• MicroSD Card Slot for saving image and video files
• Dual Viewing modes: HDMI and Windows PC
• View live 1080p video in HDMI mode
• Focus: manual or auto
• PC software features include file capture, measurement, calibration, annotation, and more.
• Includes the Cyclops stand with fine focus adjustment, 4x objective lens, and the Cyclops IR remote control. *monitor not included*
• Dual outputs: HDMI and PC Modes
• Imaging and measurement software for PC Mode (available via download)
• 13x-140x magnification (based on a 24" monitor)
• Save images to PC or MicroSD Card

• CMOS Sensor: 8 million pixels
• CMOS sensor Magnification (based on a 24 inch monitor):Object Lens 4X: 13x~140x
• Auxiliary sourceWhite LED × 30pcs
• Image CaptureVia Software or MicroSD Card
• Video Capture Via Software
• DC port: Adapter DC Input
• HDMI port: Output 1080P(1920*1080 Pixel) - image
• USB port: USB 2.0
• SD Port: Micro SD: Support 2G~128G, FAT32 Format
• Focus control:IR remote control
• Power supplier(Output：DC 5.0V/2.0A Input：AC 100-240V 50/60Hz)
• Power Consumption: (A/C)1.8A(Max)/9W
• Size: 106(L)×106(W)×152(T) mm
• Weight.7 lb
• Operation environmentTemperature -5℃ ~ 50℃; Humidity-lower than 85% (No Condensation)
• Package Contents: Cyclops Digital Microscope |HDMI Cable |USB Cable |Power adapter |Cyclops Stand |User Guide |2GB microSD
