parameter
100 L/min flow rate (4 bar)
General description

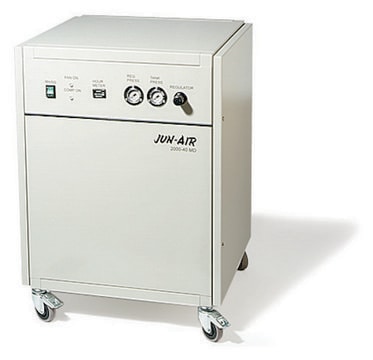

Use this stand-alone air compressor to supply a downstream zero air or nitrogen generator that does not have an integral air compressor. This unit can also be used to supply compressed air for pneumatic control applications. More than 30 years of experience and product development keep Jun-Air the leader in air compressor technology.
Other Notes
Features/Benefits
Specifications
Marks
- Generate oilless, dry, clean air
- Quiet and vibrationless
- Highly efficient cooling enables compressors to run continuously
- Compressor is housed in a sound-reducing cabinet
- Incorporates an effluent filter/dryer to reduce moisture
Specifications
- Max. Pressure: 120 psig (8 bar)
- Flow Rate at 0 bar: 175 L/min.
- Flow Rate at 1 bar: 132 L/min.
- Flow Rate at 2 bar: 120 L/min.
- Flow Rate at 3 bar: 112 L/min.
- Flow Rate at 4 bar: 105 L/min.
- Flow Rate at 5 bar: 99 L/min.
- Flow Rate at 6 bar: 94 L/min.
- Flow Rate at 7 bar: 90 L/min.
- Flow Rate at 8 bar: 86 L/min.
- Noise: 53 dB at 120 psig (8 bar)
- Power Needs: 110 V (60 Hz) or 230 V (60 Hz)
- Shipping Weight: 254 lb (115 Kg)
- Dimensions (H x W x D): 31 in. x 25 in. x 22.5 in. (79 cm x 63 cm x 57 cm)
Marks
- CE approved
- UL listed
- CSA listed
- IEC 1010 certified
Legal Information
Jun-Air is a trademark of IDEX Health & Science, LLC
