About This Item
UNSPSC Code:
41115700
AC/DC input
(see H2F-510WD for UK & EU cordsets and compatibility), 100 - 230 V AC, 4 A (NA cordset included)
feature
output flow≤ 510 mL/min, 4 L/week water consumption (24/7, full flow), 5 - 100 psig delivery pressure (0.3 - 6.89 barg), optional auto water fill (AWF), > 99.9995% purity
unit H × W × D
435 mm (17.1 in.) × 342 mm (13.5 in.) × 457 mm (18 in.)
weight
19 kg (41.9 lb ), (unit), 23 kg (50.7 lb ), (unit)full of water
application(s)
industrial qc
life science and biopharma
General description

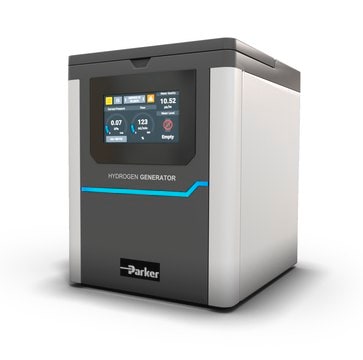

ChromGas H2F generators supply fuel gas to all widely used Gas Chromatography (GC) flame detectors in modern laboratory workflows. These generators come in four models with flow rates ranging from 100ml/min to 510ml/min, capable of serving multiple detectors simultaneously and accommodating the unique needs of each Parker customer. Moreover, they can double as a source of collision gas for Inductively Coupled Plasma Mass Spectrometry (ICP-MS) applications.
ChromGas H2F maintains the consistent stackable design and compact size that characterizes the entire ChromGas series, ensuring effortless integration with other ChromGas units and freeing up valuable lab space.
Technical Data
hydrogent outlet: 1/8" compression fitting
water drain: quick release push in fitting
water fill: quick release push in fitting
ChromGas H2F maintains the consistent stackable design and compact size that characterizes the entire ChromGas series, ensuring effortless integration with other ChromGas units and freeing up valuable lab space.
Technical Data
- Ambient temperature range: 41-104F (5-40C)
- Water supply pressure: <60 psig (<4.1 barg)
- Water quality: Deionized. ASTM II, >1MOhm, <1µs, filtered to <100µm
- Supply voltage range: 100-230V 50/60 Hz
- Port connections:
hydrogent outlet: 1/8" compression fitting
water drain: quick release push in fitting
water fill: quick release push in fitting
Features and Benefits
- Eliminate dangerous hydrogen cylinders from
- the work place
- Simple to install and operate
- Compact, reliable with minimal maintenance
- Produces a continuous supply of 99.9995% pure hydrogen at up to 100 psi (6.9 bar)
- 3 year standard cell warranty
- Optional automatic water fill and remote
- networking capability
- Stackable with other ChromGas products
- Exceeds NFPA 50A and OSHA 1910.103 regulations
- Meets CSA, UL, CE and UKCA
Legal Information
Parker is a registered trademark of Parker Hannifin
Chromgas is a registered trademark of Parker Hannifin
