Containers for Manual, Sterile, Biopharma Sampling
Sterile sampling plays a pivotal role in pharmaceutical and biopharmaceutical drug manufacturing and safeguards the safety and quality of drug products. Choosing the right sampling technology and an appropriate container is essential to secure the sample and ensure integrity of test results while minimizing product loss and costs.
NovaSeptum® GO systems and NovaSeptum® SURe assemblies offer closed, sterile sampling options for manual sampling throughout the pharma and biopharma workflow. NovaSeptum® technologies include a large range of containers of different volumes and configurations designed for different process fluids, assays, volume and sample handling requirements. These containers are available for both NovaSeptum® GO systems and NovaSeptum® SURe Single-Use assemblies.

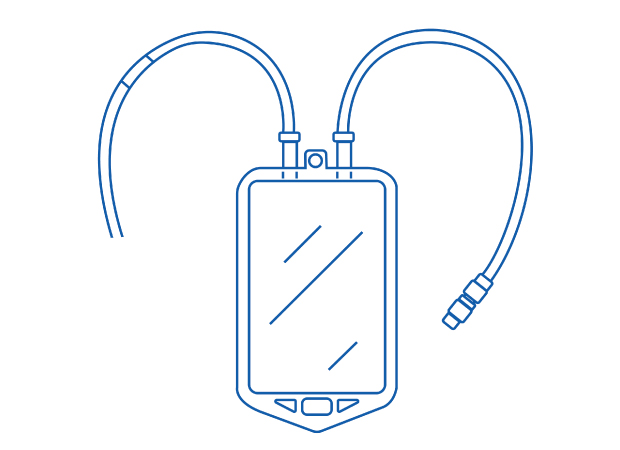

High Purity Bags
NovaSeptum® High Purity Bags are a cost-effective option for all samples and are ideal for applications where high purity is required.
Recommended for
- General sampling (including endotoxin and bioburden)
- Archiving and storage
- Large volumes
Properties
- 50–1000 mL volumes
- Bags: PureFlex™ film (Polyethylene contact layer)
- Inlet Tubing material: thermoplastic elastomer or C-Flex® tubing
- Freezing (-80oC) compatible
- Volume indication (with accessory)
- Mobius® assembly compatible
- Single and manifold options available
Additional Information
- Find additional information on NovaSeptum® GO High Purity Bags.
- Find additional information on NovaSeptum® SURe High Purity Bag Assemblies.
Products

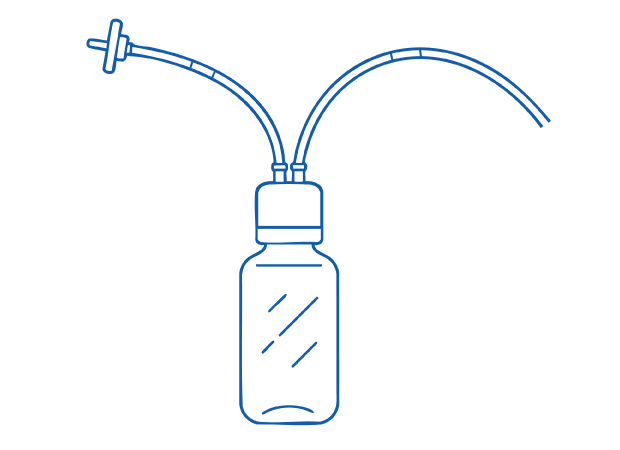

Bottles
NovaSeptum® bottles are ideal for all testing needs.
Recommended for
- General sampling and longer-term storage
- Bioburden and sterility testing
- Total Organic Carbon (TOC) testing
Properties
- 60–500 mL volumes
- Bottle: Polyethylene terephthalate glycol (PETG)
- Inlet Tubing: thermoplastic elastomer or C-Flex® tubing
- Vented with Millex® Air Vent
- Volume indication
- Free-standing
- Freezing (-80 oC) compatible
- Tamper evidence
- Low TOC concentration: below the USP cleanliness limit of 0.50 mg C/L
- Mobius® assembly compatible
- Single and manifold options available
Additional Information
- Find additional information on NovaSeptum® GO bottles.
- Find additional information on NovaSeptum® SURe Bottle Assemblies.
Products

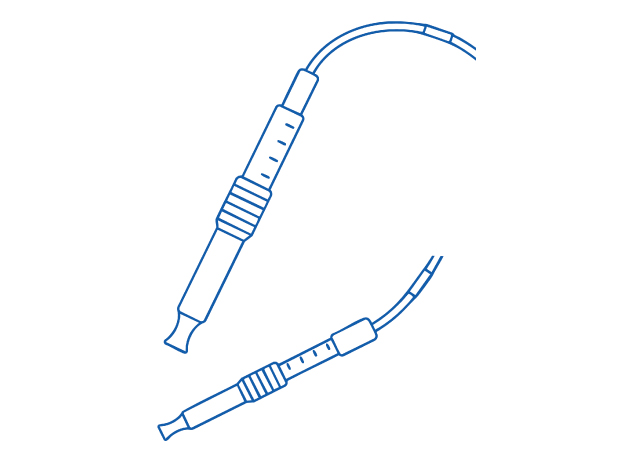

Accurate Volume Syringes
NovaSeptum® Accurate Volume Syringes are ideal for accurate sampling and transfer of small volumes of high value product.
Recommended for
- High accuracy sampling
- Material transfer
- Archiving
Properties
- 5 and 20 mL volumes
- Container: Polycarbonate and silicone
- Inlet Tubing: Platinum-cured silicone
- Freezing (-80oC) compatible
- Autoclave compatible
- Volume indication
- Tamper evidence
- Mobius® assembly compatible
- Single and manifold options available
Additional Information
- Find additional information on NovaSeptum® GO Accurate Volume Syringes.
- Find additional information on NovaSeptum® SURe Accurate Volume Syringe Assemblies.
Products

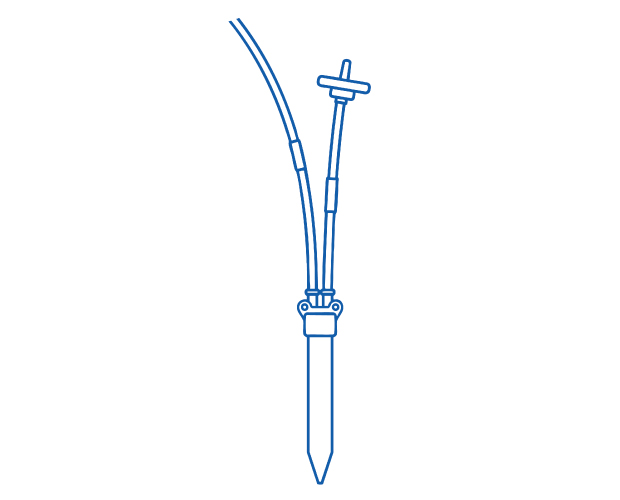

Conical Tubes
NovaSeptum® Conical Tubes are small volume sampling containers for sampling at any point in the production process eliminating the need to aliquot.
Recommended for
- Small volume sampling
- Endotoxin testing (15 mL tubes)
- Bioburden and sterility testing
- Material transfer
Properties
- 15 and 50 mL volumes
- Container: 15 mL Polystyrene, 50 mL polypropylene
- Inlet Tubing: Thermoplastic elastomer or C-Flex® tubing
- Volume indication
- Tamper evidence
- Vented with Millex® Air Vent
- Compatible with centrifugation when used with optional cap
- Optional dip tube enables secure transfer of material between containers with minimal product loss and foaming
- Mobius® assembly compatible (50 mL)
- Single and manifold options available
Additional Information
- Find additional information on NovaSeptum® GO Conical Tubes.
- Find additional information on NovaSeptum® SURe Conical Tube Assemblies.
Products

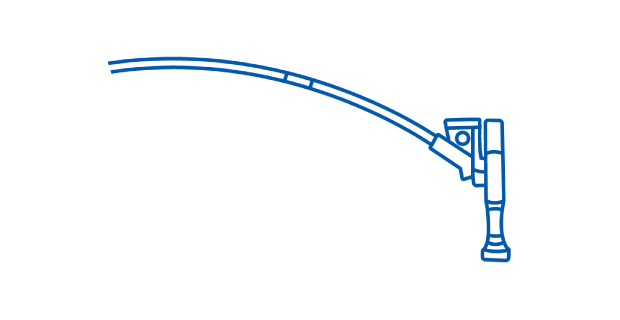

Tube Transfer Set
NovaSeptum® Transfer Units are designed for liquid transfer applications without compromising sterility.
Recommended for
- Liquid transfer applications
- Autoclavable application: NovaSeptum® tube transfer with AseptiQuik® High-Temperature and Autoclavable Trigger can be connected, after autoclave, with any NovaSeptum® SURe Assembly with AseptiQuik® S Connector
Properties
- Tubing: Thermoplastic elastomer, silicone, or C-Flex® tubing
- 140, 500 or 1000 mm
Additional Information
- Find additional information on NovaSeptum® GO Tube Transfer Unit.
- Find additional information on NovaSeptum® SURe Tube Transfer Unit.
Products
Please refer to the data sheets for a comprehensive overview of NovaSeptum® GO sterile sampling system and NovaSeptum® SURe sterile sampling assemblies.
For information on automated aseptic sampling, explore MAST® Autosampling Solution.
