SuFEx: Sulfonyl Fluorides that Participate in the Next Click Reaction

Featuring ESF Reagent for the Easy Installation of SO₂F

Introduction

Sulfur (VI) fluoride exchange (SuFEx) has been identified as the next click chemistry reaction owing to the balanced properties of fluoride bonding to hydrogen and sulfur (VI). In collaboration with K. Barry Sharpless, we now offer a variety of sulfonyl fluoride reagents that undergo a newly defined click chemistry reaction.¹ SuFEx building blocks provide “connective” chemistry that will find wide utility in applications such as chemical synthesis, materials science, chemical biology, and drug development.^1-4

Advantages

In line with traditional click chemistry, SuFEx is a simple, water- and oxygen-friendly reaction that allows for high yields with little purification. In addition, sulfonyl fluorides have a distinctive relationship between stability and reactivity due to some of the following features.¹

Resistance to reduction: In contrast to other halides, sulfonyl fluoride cleavage is heterolytic and thus resistant to reduction.1

1. Resistance to reduction:In contrast to other halides, sulfonyl fluoride cleavage is heterolytic and thus resistant to reduction.¹

Thermodynamic stability: Sulfonyl fluorides are stable to thermolysis as well as nucleophilic substitution1 and have notably exhibited inert reactivity in refluxing aniline.2

2. Thermodynamic stability:Sulfonyl fluorides are stable to thermolysis as well as nucleophilic substitution1 and have notably exhibited inert reactivity in refluxing aniline.²

Exclusive reaction at sulfur: Sulfonyl fluorides react fast and, compared to sulfonyl chlorides, chemoselectively produce only sulfonylation products.1

3. Exclusive reaction at sulfur:Sulfonyl fluorides react fast and, compared to sulfonyl chlorides, chemoselectively produce only sulfonylation products.¹

Special nature of the fluoride-proton interaction: Stabilization of the fluoride ion in water affords chemistry in aqueous environments.1

4. Special nature of the fluoride-proton interaction:Stabilization of the fluoride ion in water affords chemistry in aqueous environments.¹

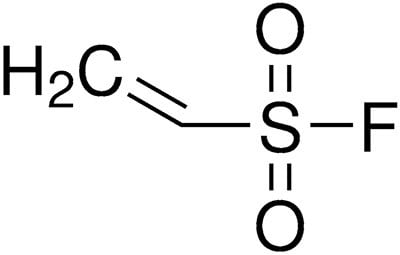

Featured SuFEx Reagent: Ethenesulfonyl Fluoride (ESF)

Among our available sulfonyl fluoride building blocks, we offer ethenesulfonyl fluoride (Product No. 746959), ESF, a Michael acceptor for N, O, S, and C nucleophiles. Therefore, the SO₂F functional group can be readily incorporated into molecules for drug discovery and chemical biology applications. The generated sulfonyl fluoride is extremely stable but readily reacts with nucleophiles under the appropriate conditions for further functionalization or biochemical use.^1-2

Representative Applications

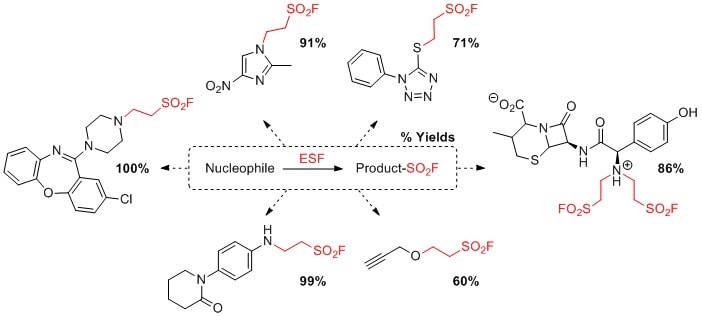

Synthetic Installation of SO₂F

Facile incorporation of the sulfonyl fluoride onto nucleophiles can be carried out with ESF for high yields.^1-2

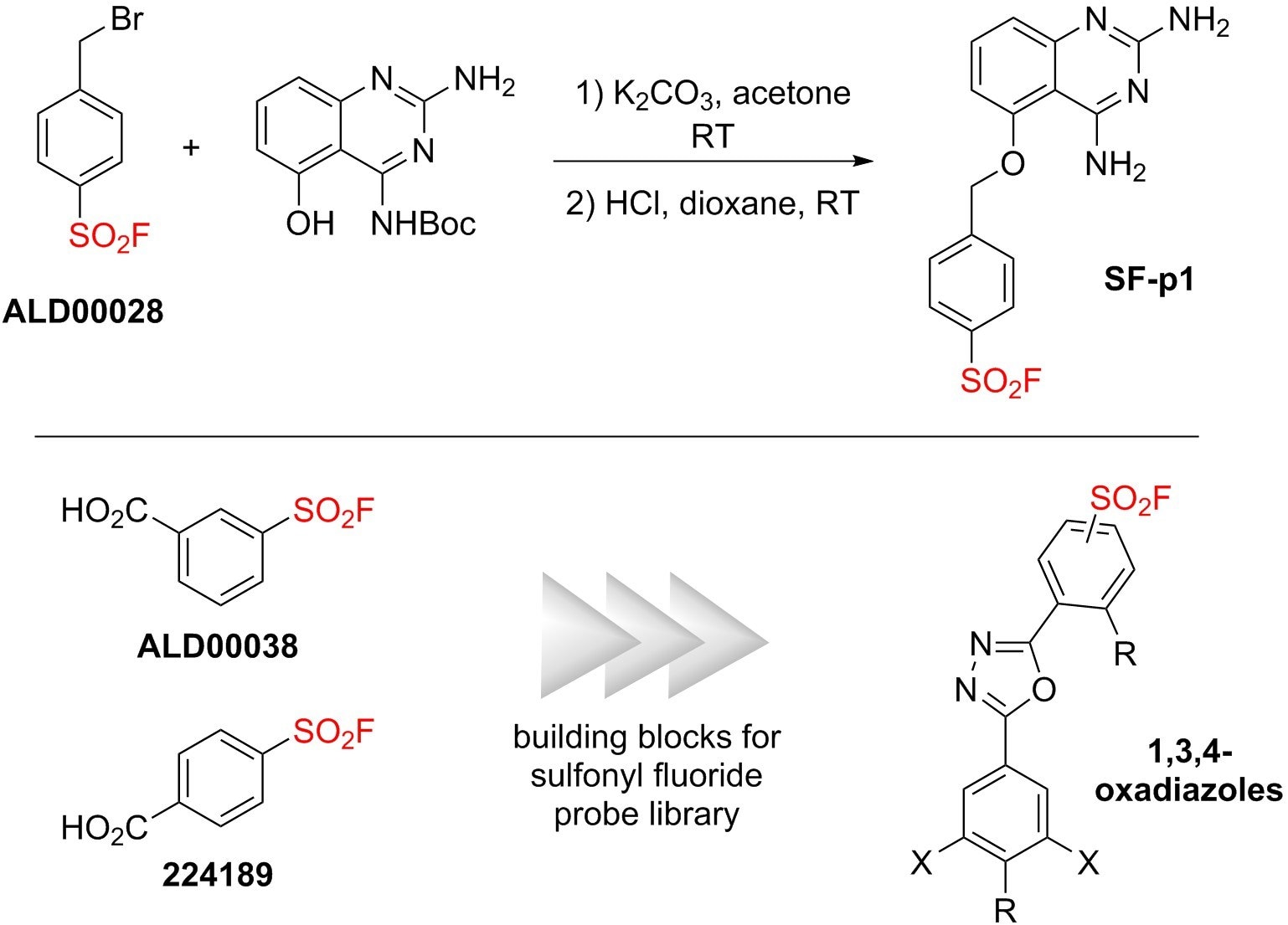

Other SuFEx building blocks have been used to introduce SO₂F handles for applications in chemical biology, such as on the probe used by Jones and co-workers (SF-p1)⁵ and in the library generated by Kelly and his colleagues (1,3,4-oxadiazoles).⁶

Chemical Biology and Drug Discovery

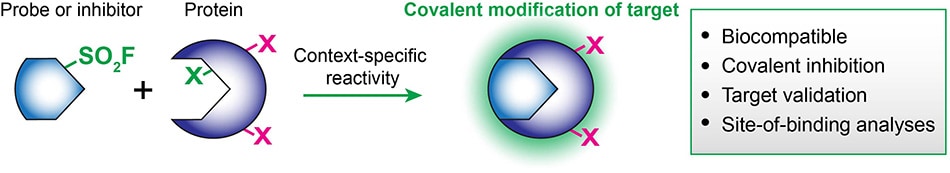

When integrated on known bioactive molecules, the biocompatibility and reactivity of sulfonyl fluorides provide powerful tools for chemical biologists and drug developers.⁴ The SO₂F group covalently modifies many protein residues but in a context-specific manner: serine, threonine, tyrosine, lysine, cysteine, and histidine.⁴ As such, sulfonyl fluorides can be uniquely enlisted in chemical probes, covalent inhibitors, or various stages of your translational workflow, including target validation and lead optimization/late-stage functionalization

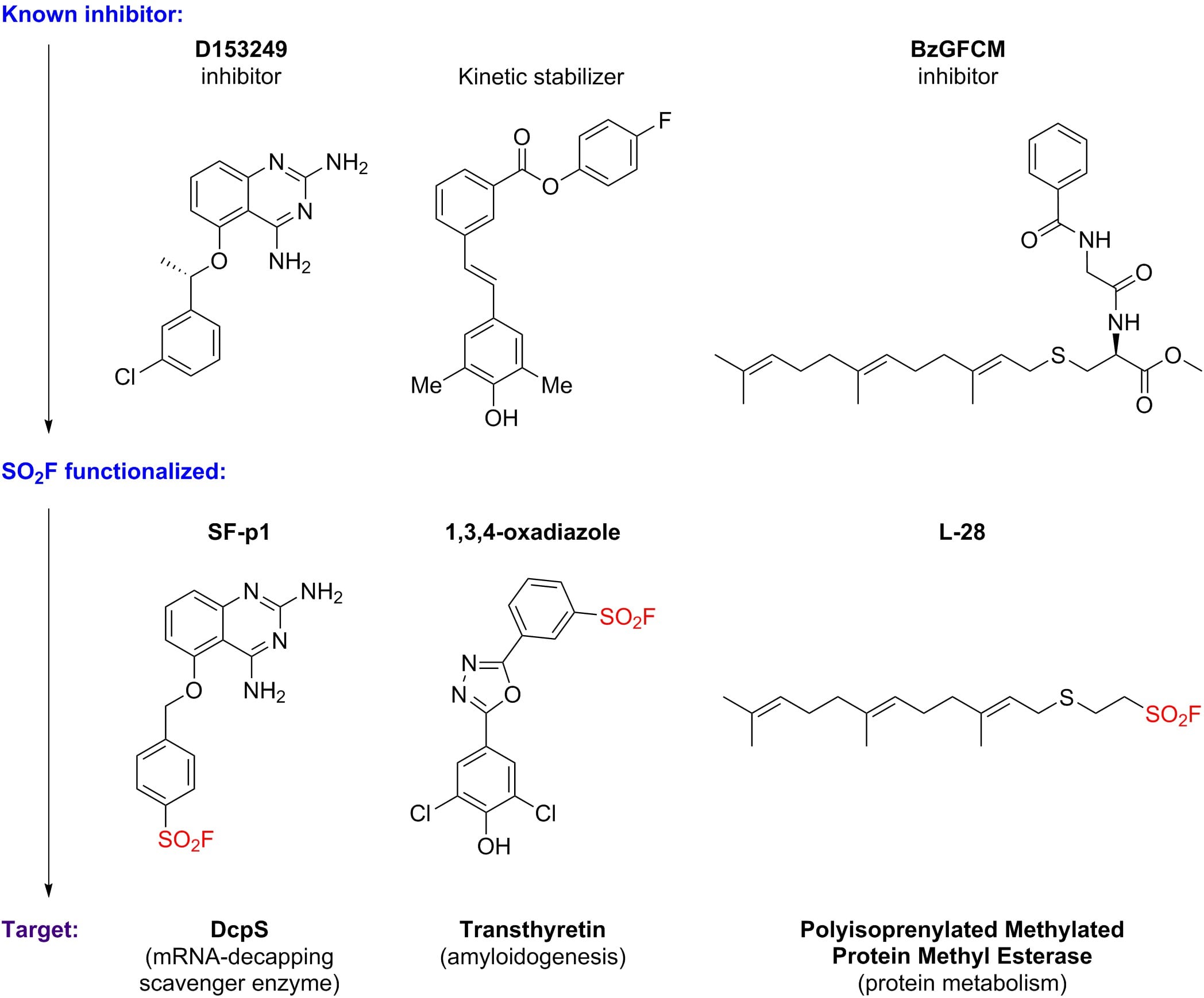

Some recent examples of the functionalization of previous inhibitors and enzyme stabilizers with SO₂F resulted in the chemoselective modification of proteins of interest: DcpS on Tyr,⁵ transthyretin on Lys,⁶ and polyisoprenylated methylated protein methyl esterase on Ser.⁷ Other well-known sulfonyl fluoride inhibitors include PMSF (P7626, 78830, 93482), AEMSF (76307, 15633, A8456) and FSBA (F9128).

To learn more about the biological applications of SuFEx, check out our webinar with Lyn Jones of Pfizer! "Sulfonyl Fluorides in Chemical Biology and Drug Development"

Explore other products in our catalog that have been established in collaboration with Professor Sharpless at his Professor Product Portal.

References

Dong J, Krasnova L, Finn MG, Sharpless KB. 2014. Sulfur(VI) Fluoride Exchange (SuFEx): Another Good Reaction for Click Chemistry. Angew. Chem. Int. Ed.. 53(36):9430-9448. https://doi.org/10.1002/anie.201309399

Krutak JJ, Burpitt RD, Moore WH, Hyatt JA. 1979. Chemistry of ethenesulfonyl fluoride. Fluorosulfonylethylation of organic compounds. J. Org. Chem.. 44(22):3847-3858. https://doi.org/10.1021/jo01336a022

Dong J, Sharpless KB, Kwisnek L, Oakdale JS, Fokin VV. 2014. SuFEx-Based Synthesis of Polysulfates. Angew. Chem. Int. Ed.. 53(36):9466-9470. https://doi.org/10.1002/anie.201403758

Narayanan A, Jones LH. Sulfonyl fluorides as privileged warheads in chemical biology. Chem. Sci.. 6(5):2650-2659. https://doi.org/10.1039/c5sc00408j

Hett EC, Xu H, Geoghegan KF, Gopalsamy A, Kyne RE, Menard CA, Narayanan A, Parikh MD, Liu S, Roberts L, et al. 2015. Rational Targeting of Active-Site Tyrosine Residues Using Sulfonyl Fluoride Probes. ACS Chem. Biol.. 10(4):1094-1098. https://doi.org/10.1021/cb5009475

Grimster NP, Connelly S, Baranczak A, Dong J, Krasnova LB, Sharpless KB, Powers ET, Wilson IA, Kelly JW. 2013. Aromatic Sulfonyl Fluorides Covalently Kinetically Stabilize Transthyretin to Prevent Amyloidogenesis while Affording a Fluorescent Conjugate. J. Am. Chem. Soc.. 135(15):5656-5668. https://doi.org/10.1021/ja311729d

Aguilar B, Amissah F, Duverna R, S. Lamango N. 2011. Polyisoprenylation Potentiates the Inhibition of Polyisoprenylated Methylated Protein Methyl Esterase and the Cell Degenerative Effects of Sulfonyl Fluorides. CCDT. 11(6):752-762. https://doi.org/10.2174/156800911796191015
