Gas & Vent Filters

Gas and Vent Filters for Bioprocessing

Gas or vent filters containing hydrophobic membrane are commonly used as air vents throughout biomanufacturing to maintain near-ambient pressure in processing tanks and closed systems. These filters act as a barrier, preventing both the entry of adventitious microorganisms and the release of product aerosols.

Generally, the main considerations for gas filtration include filter position, sizing, sterilization processes, and integrity testing practices. There are stringent regulatory expectations for critical gas or vent filters, which include confirming the integrity of filters on sterile holding tanks and filling machines, and after steam-in-place sterilization or use.

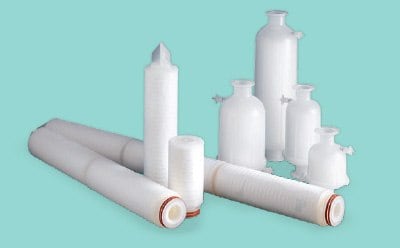

We offer gas and vent filters in both cartridge and single-use capsule formats for different applications. Each sterilizing-grade filter is integrity tested during manufacturing and is supported by comprehensive documentation for compliance with regulatory requirements.

Selecting the right gas or vent filter

  • Aervent® filters contain sterilizing-grade 0.2 µm hydrophobic polytetrafluoroethylene (PTFE) membrane. These filters are used in bioprocessing applications where it is critical to use a phobic filter with validated bacterial and viral retention capabilities.
  • Millipore Express® SPG (Sterile Phobic Gamma) capsule filters contain sterilizing-grade hydrophobic 0.2 μm polyethersulfone (PES) membrane and are the preferred choice for gas filtration and venting in single-use applications. These filters are gamma-compatible.
  • Hydrophobic Durapore® filters contain 0.22 µm hydrophobic sterilizing-grade polyvinylidene fluoride (PVDF) membrane and provide reliable removal of contaminants and microorganisms from gases.
  • Aerex® cartridge filters contain 0.2 μm polytetrafluoroethylene (PTFE) membrane and are designed for the removal of bacteria and viruses from moist gas streams in moderately- or non-critical applications. Aerex® filters are not validated for bacterial retention.
  • Millipak® and Millidisk® Barrier filters contain both hydrophilic and hydrophobic sterilizing-grade 0.22 µm Durapore® PVDF membrane which allows the flow of both liquid and gas. These filters simplify PUPSIT in final filtration assemblies by maintaining sterility while removing the constraints of a flush bag or a can.

Products

Sort by Relevance
Showing 1-20 of 40
Page 1 of 2
Showing 1-20 of 40
Compare
Product Number
Product Name
Product Description
Pricing
MTGR85000
Aervent®-50 Filter Unit 0.2 µm hydrophobic 1/4 in. HB/HB
pore size 0.2 μm
MCGBL4S03
Hydrophilic/Hydrophobic Durapore® 0.22 µm, Millidisk® Barrier 40 Cartridge
Millidisk® Barrier 40
CTGR01TP1
Aervent® 0.2 µm, Cartridge
pore size 0.2 μm, cartridge nominal length 10 in. (25 cm), Code 0
KHGES03TT3
Millipore Express® SHC, Opticap® XL Capsule
sterile, Opticap® XL 3, inlet connection diam. 1.5 in., pore size 0.5/0.2 μm, cartridge nominal length 3 in. (7.5 cm)
KEGBG050HH
Millipore Express® SPG 0.2 µm, Opticap® XL Capsule
non-sterile, pore size 0.2 μm
CTGR75S01
Aervent® 0.2 µm, Cartridge
pore size 0.2 μm, cartridge nominal length 5 in. (13 cm), Code 7
CTGR72TP1
Aervent® 0.2 µm, Cartridge
pore size 0.2 μm, cartridge nominal length 20 in. (51 cm), Code 7
KTGRA05TT1
Aervent® 0.2 µm, Opticap® XL Capsule
inlet connection diam. 1.5 in., Opticap® XL 5, pore size 0.2 μm, cartridge nominal length 5 in. (13 cm)
KEGBG003FF3
Millipore Express® SPG 0.2 µm, Opticap® XL Capsule
Opticap® XL 300, inlet connection diam. 3/4 in., pore size 0.2 μm
KTGRA05FF1
Aervent® 0.2 µm, Opticap® XL Capsule
inlet connection diam. 3/4 in., Opticap® XL 5, pore size 0.2 μm, cartridge nominal length 5 in. (13 cm)
MCGL20S03
Durapore® 0.22 µm, Millidisk® Cartridge
filtration area 1000 cm2, hydrophilic
KEGBG003HH3
Millipore Express® SPG 0.2 µm, Opticap® XL Capsule
Opticap® XL 300, inlet connection diam. 9/16 in., pore size 0.2 μm
MCGB10S02
Hydrophobic Durapore® 0.22 µm, Millidisk® Cartridge
filtration area 500 cm2, hydrophobic
CWSS03S03
Milligard® 0.5/0.2 µm nominal, Cartridge
pore size 0.5/0.2 μm, cartridge nominal length 30 in. (75 cm), Code 0 (2-222; O-rings)
CVVI01TPE
Durapore® CBR 0.1 µm, Cartridge
pore size 0.1 μm, cartridge nominal length 10 in. (25 cm), Code 0 (2-222; O-rings)
KVGLA02NN3
Durapore® 0.22 µm, Opticap® XL Capsule
Opticap® XL 2, inlet connection diam. 1/4 in., cartridge nominal length 2 in. (5 cm)
CTGR02TP1
Aervent® 0.2 µm, Cartridge
pore size 0.2 μm, cartridge nominal length 20 in. (51 cm), Code 0 (2-222; O-rings)
CTGR03TP1
Aervent® 0.2 µm, Cartridge
pore size 0.2 μm, cartridge nominal length 30 in. (76 cm), Code 0 (2-222; O-rings)
CLGL71TP3
Durapore® 0.22 µm, High Area, Cartridge
cartridge nominal length 10 in. (25 cm), Code 7 (2-226; O-rings w/locking-tabs)
FHLP29325
Fluoropore Membrane, PTFE, hydrophobic, 0.5 µm, 293 mm, white, plain
