900720
PffBT4T-2OD
别名:

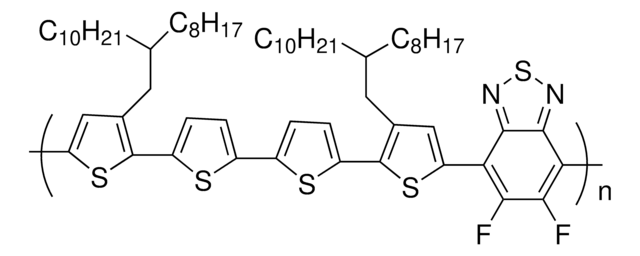

PCE-11, 聚[(5,6-二氟-2,1,3-苯并噻二唑-4,7-二基) -alt-(3,3’’’-二(2-辛基十二烷基)-2,2’,5’,2’’,5’’,2’’’-四噻吩-5,5″′-二基）]
description
Band gap: 1.65 eV
form
powder
mol wt
Mw 100,000-150,000 by GPC
solubility
chlorinated solvents: soluble (at elevated temperature
solubility limit: <17 mg/ml in chlorobenzene + dichlorobenzene), chlorobenzene: soluble, dichlorobenzene: soluble
λmax
400-750 nm
orbital energy
HOMO -5.34 eV , LUMO -3.69 eV
Application
需要热墨水处理（即在 100-110°C 的温度下用墨水涂布以确保良好的可涂布性）。
存储类别
11 - Combustible Solids
wgk
WGK 3
flash_point_f
Not applicable
flash_point_c
Not applicable
Comparison of Two D-A Type Polymers with Each Being Fluorinated on D and A Unit for High Performance Solar Cells.
Jo JW, et al.
Advances in Functional Materials, 25(1), 120-125 (2015)
Yuhang Liu et al.
Nature communications, 5, 5293-5293 (2014-11-11)
Although the field of polymer solar cell has seen much progress in device performance in the past few years, several limitations are holding back its further development. For instance, current high-efficiency (>9.0%) cells are restricted to material combinations that are
Zhihong Wu et al.
Journal of the American Chemical Society, 138(6), 2004-2013 (2016-01-23)
With the demonstration of small-area, single-junction polymer solar cells (PSCs) with power conversion efficiencies (PCEs) over the 10% performance milestone, the manufacturing of high-performance large-area PSC modules is becoming the most critical issue for commercial applications. However, materials and processes
