900898
Hyflon® AD 40L S
别名:

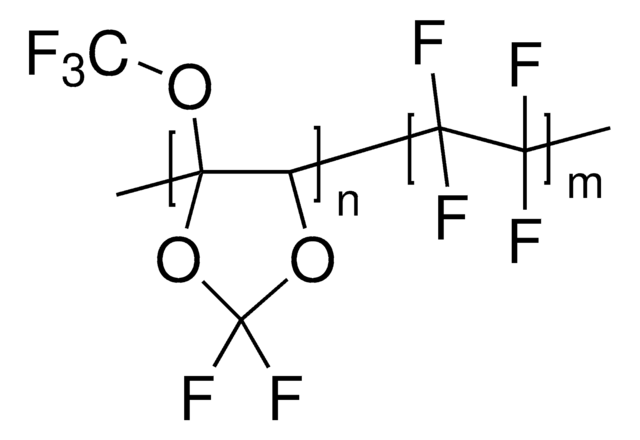

Amorphous perfluoropolymer solution, P(TTD-TFE), Poly(tetrafluoroethylene-co-2,2,4-trifluoro-5-trifluoromethoxy-1,3-dioxole), TTD-TFE copolymers
description
Polymer content: Hyflon® AD 40L 9.0 ± 0.5 wt%, Solution in perfluorinated solvent (Galden® D02TS)
form
liquid
composition
TTD content, 40 ±5 mol % by
transmittance
>95% (in UV-Vis range)
viscosity
600 cP(25 °C, Brookfield)
General description
- Hyflon® AD 40L S is a commerical grade Hyflon® AD 40H perfluoropolymer solution in a perfluorinated solvent. This can be considered ready-to-use solution suitable for application in the most demanding solution process technologies. Amorphous glassy polymer structure.
- Solubility in perfluorinated solvents.
- Low dielectric constant of 2.0 at 1 kHz.
- Excellent optical properties:
b) Low refractive index.
Hyflon® AD can provide uniform and thin films or coatings (down to submicron thickness if required) by casting or coating techniques and thermal treatments, well below the typical baking temperatures of semicrystalline perflouropolymers.
Key features of Hyflon® AD amorphous perfluoropolymers:
- High temperature stability.
- Good chemical resistance.
- Excellent hydrophobicity.
- Very low surface energy.
- Low dielectric constant.
- Very high gas permeability and selectivity.
- Outstanding optical properties (e.g. high UV transmittance, low refractive index).
Examples of typical applications include:
- Protective coatings.
- Interlayer dielectric films and pellicles for electronics.
Legal Information
Galden is a registered trademark of Solvay Group
Hyflon is a registered trademark of Solvay Group
存储类别
10 - Combustible liquids
wgk
WGK 3
flash_point_f
Not applicable
flash_point_c
Not applicable
