Hyflon® AD 40H S

别名:

Amorphous perfluoropolymer solution, P(TTD-TFE), Poly(tetrafluoroethylene-co-2,2,4-trifluoro-5-trifluoromethoxy-1,3-dioxole), TTD-TFE copolymers

登录 查看组织和合同定价。

选择尺寸

关于此项目

线性分子式:

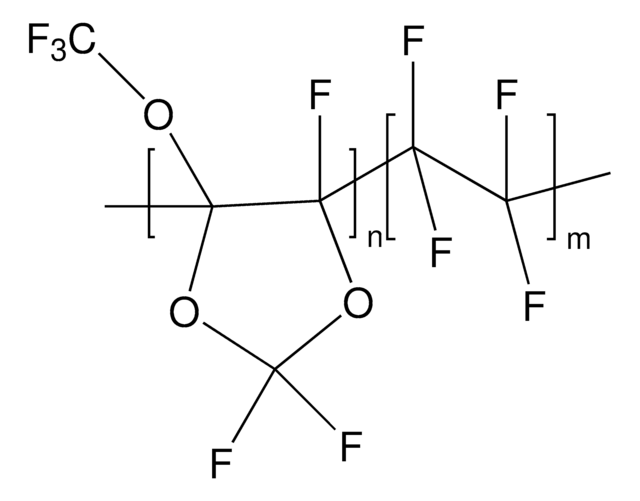

(C4F6O3)n(C2F4)m
化学文摘社编号:
161611-79-6
NACRES:
NA.23
UNSPSC Code:
12352200

主要文件

查看所有文档
技术服务
需要帮助？我们经验丰富的科学家团队随时乐意为您服务。
让我们为您提供帮助
技术服务
需要帮助？我们经验丰富的科学家团队随时乐意为您服务。
让我们为您提供帮助

description

Polymer content: Hyflon® AD 40H 2.5 ± 0.5 wt%, Solution in perfluorinated solvent (Galden® D02TS)

form

liquid

composition

TTD content, 40 ±5 mol % by

transmittance

480-800 nm, >95%

viscosity

250 cP(25 °C, Brookfield)

General description

Hyflon® AD 40H S is a commerical grade Hyflon® AD 40H perfluoropolymer solution in a perfluorinated solvent. This can be considered ready-to-use solution suitable for application in the most demanding solution process technologies.
  • Amorphous glassy polymer structure.
  • Solubility in perfluorinated solvents.
  • Low dielectric constant of 2.0 at 1 kHz.

Excellent optical properties:
  • High UV transmittance.
  • Low refractive index.

Hyflon® AD can provide uniform and thin films or coatings (down to submicron thickness if required) by casting or coating techniques and thermal treatments, well below are the typical baking temperatures of semicrystalline perflouropolymers.

Key features of Hyflon® AD amorphous perfluoropolymers:
  • High temperature stability.
  • Good chemical resistance.
  • Excellent hydrophobicity.
  • Very low surface energy.
  • Low dielectric constant.
  • Very high gas permeability and selectivity.
  • Outstanding optical properties (e.g. high UV transmittance, low refractive index).

Examples of typical applications include:
  • Protective coatings.
  • Interlayer dielectric films and pellicles for electronics.

Legal Information

Galden is a registered trademark of Solvay Group
Hyflon is a registered trademark of Solvay Group

存储类别

10 - Combustible liquids

wgk

WGK 3

flash_point_f

171.0 °F

flash_point_c

77.22 °C
