material
Plexiglas® bath
feature
CE compliant, integrated cooling coil
manufacturer/tradename
ED-5A, Julabo 9116305
availability
not available in EU
temperature measuring range
20-60 °C
parameter
20-60 °C temp. range, ±0.03 °C temp. stability
heater capacity
2 kw
W × L × H
14 cm × 40 cm × 35 cm
bath opening W × L × depth
12 cm × 24 cm × 15 cm
capacity
5 L
volume
5 L , 5000 mL
weight
5.3 kg
General description

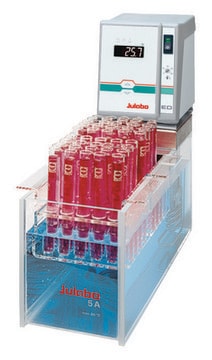

Open bath circulators with Plexiglas or Makrolon bath tank for internal/external temperature applications. All baths are Safety class 1.
Economy series:
Cover needs to be ordered separately.
Economy series:
- Bright LED-display for the actual value + set point, resolution 0.01°C
- PID temperature control, stability ± 0.02 or ± 0.03°C
- Adjustable high temp cut off and dry running protection
- Pressure pump capacity 15 L/min, 350 mbar
- A = Plexiglass
- M = Makrolon
Cover needs to be ordered separately.
