feature
4 heads, 1 stage
packaging
pack of 1 ea
manufacturer/tradename
20734002
parameter
operating temperature at 10—40 °C, 7.3 m3/h pumping speed (at 50 Hz)
inlet and outlet L × W × H
328 mm × 239 mm × 198 mm, Inlet connection: Hose nozzle DN 8-10 mm
Outlet connection: 2 x G1/4"

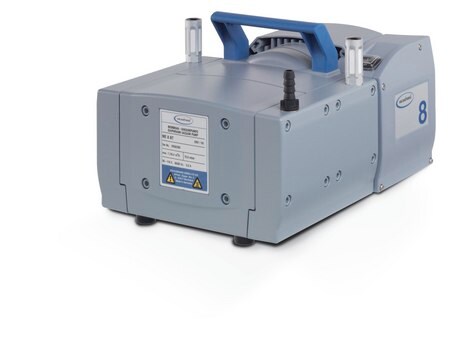

General description
Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases. All parts in contact with pumped media are made of aluminum and selected plastics, and allow a wide range of applications for non-corrosive gases. The highly flexible, fabric-reinforced double diaphragm made of FKM is ideal for extended operating life. These pumps with four heads provide very high pumping speed. The new NT-series features improved performance data. Large one-stage diaphragm pumps are an excellent choice for continuous, oil-free pumping of large amounts of gas- es. Typical applications are vacuum ovens and pumping of non-corrosive gases in general. We recommend these pumps especially for processes with high inlet and process pressures. They are excellent for very fast evacuations. The ME 8 NT offers very short evacuation times.Items supplied: Pump completely mounted, ready for use, silencer, hose nozzle, with manual.
Application
wide range of applications for non-corrosive gases
Features and Benefits
- whisper quiet and very low vibration
- powerful, even for parallel operation of several applications
- quiet operation
- very low vibration
- exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs
- Ultimate vacuum: 70 mbar
- Max pumping speed 50HZ: 7.3 m3/h
