AC/DC input
100 V / 230 V (For region specific volatage information, see footnote below)
Quality Level
product line
Milli-Q® CLX
packaging
pkg of 1 unit
parameter
120 L/hr make-up flow rate, 2400 L/day max. usage, 303 kg operating weight (668.0 lb), 4 L/min distribution flow rate
resistivity
>10 MΩ-cm, at 25°C
H × width × depth
125.5 cm (49.4 in.) × 54.3 cm (21.4 in.) × 94.7 cm (37.3 in.)
total organic carbon (TOC) residue
<500 ppb (Product water)
input
feed water nature potable tap water
output
product water quality: clinical laboratory reagent water (CLRW) (complies with CLSI guideline)

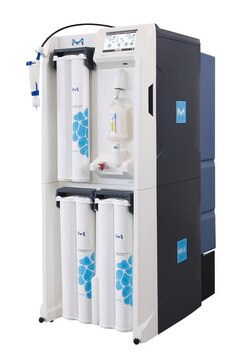

General description
The Milli-Q® CLX 8120 Water Purification System provides a high-performance solution for pure water needs of up to 2400 L per day. Up to 3 systems can be placed in series to increase daily capacity. The water produced complies with the Clinical and Laboratory Standards Institute (CLSI) guideline for clinical laboratory reagent water (CLRW).This high-throughput analyzer feed system supports your clinical lab′s maximum productivity by integrating state-of-the-art purification technologies and delivering an unprecedented level of system accessibility and service. MyMilli-Q™ Remote Care online monitoring and service capability is available on all Milli-Q® CLX systems.
Application
The high-throughput Milli-Q® CLX 8120 water purification solution feeds analyzers with consistent water quality that meets CLRW standards of the CLSI. Your clinical laboratory will benefit from a high-performance and economical water purification solution that fulfills its many critical needs.
Features and Benefits
- 24/7 real-time monitoring and secure remote-control access
- Automatic e-record archiving for up to two years facilitates laboratory accreditation and reaccreditation processes
- Elix® electrodeionization (EDI) module provides consistently high-quality water with no need for resin cylinders. This reduces maintenance, running costs and analyzer downtime
- Unique E.R.A.® technology automatically optimizes water recovery based on feed water quality to decrease water usage costs
- Built-in bactericidal mercury-free UV LED reduces system and analyzer sanitization needs to maximize lab uptime
- A large, user-friendly color touchscreen shows all important system information at a glance and allows for intuitive operation
- To ensure you always have an uninterrupted supply of pure water, these robust systems are equipped with an emergency bypass feature that is easy to set up
- The systems are compact and can be installed wherever it is convenient in the laboratory. They are also customizable, allowing you to adapt them to your specific requirements
- Available with MyMilli-Q™ Remote Care monitoring and service to support maximum uptime
Other Notes
- The indicated price currently corresponds to the above catalogue number only; it is subject to change at any time without notice.
- This catalogue number does not include consumables, accessories and other products and/or services that may be required for the installation and the correct operation of the water purification unit over time.
- Because our customers each have specific purified water needs, we recommend that you have your purchase validated by one of our specialists. We remain at your disposal to advise you, do not hesitate to contact us!
Directions For Use
Organism Retention: Microorganisms
Mode of Action: Filtering and UV
Application: Clinical laboratories
Intended Use: Water purification
Instructions for Use: This item provides water filtered through 0.22 µm sterilizing-grade membranes and exposed to bactericidal UV LED. Please refer to system equipment user guide section "System" (available in the bottom part of this web page in the Documents/More Documents/ User Guide section).
Storage Statement: Store in dry location
Disposal Statement: Dispose of in accordance with applicable federal, state, and local regulations.
Organism Retention: Microorganisms
Mode of Action: Filtering and UV
Application: Clinical laboratories
Intended Use: Water purification
Instructions for Use: This item provides water filtered through 0.22 µm sterilizing-grade membranes and exposed to bactericidal UV LED. Please refer to system equipment user guide section "System" (available in the bottom part of this web page in the Documents/More Documents/ User Guide section).
Storage Statement: Store in dry location
Disposal Statement: Dispose of in accordance with applicable federal, state, and local regulations.
- 230 V systems are required for Europe, Africa, Middle East regions, and certain LATAM and APAC countries
- 120 V systems are required for North America, Taiwan, and certain LATAM countries
- 110 V systems are required for Japan
Legal Information
E.R.A. is a registered trademark of Merck KGaA, Darmstadt, Germany
ELIX is a registered trademark of Merck KGaA, Darmstadt, Germany
Milli-Q is a registered trademark of Merck KGaA, Darmstadt, Germany
MyMilli-Q is a trademark of Merck KGaA, Darmstadt, Germany
