完整性测试仪
各种监管指南要求对无菌溶液（如大容量注射剂（LVP）和小容量注射剂（SVP））处理过程中使用的灭菌过滤器进行完整性测试。Integritest® 5 自动测试仪器可在线或离线对过滤设备进行非破坏性完整性测试，并可灵活地为疏水性过滤器添加配套的 Exact-Air™ II 水基测试装置，从而满足了这一需求。
*EMA 附件 1；FDA 无菌加工 cGMP 指南（2004 年）
Products
Integritest® 5 自动测试仪器
Integritest® 5 使用压力衰减测量来确定过滤器的完整性。在进行系统容积测量的同时，还要进行一次压力衰减测量，以确定扩散和 HydroCorr™ 测试的相关流量。切线法用于在跨膜压力不断增加的情况下，通过一系列压力衰减来确定过滤器气泡点。根据测试参数和持续读数确定最佳测量压力，从而减少了可靠绘制过滤器轮廓和返回准确结果所需的测量次数。
主要功能包括：
- 改进的测试算法，使测试更快、更简单
- 直观的软件，每个步骤都有帮助屏幕
- 灵活的显示、运行信息和测试集合，适合您的流程
- 联网功能，如多单元管理和同步

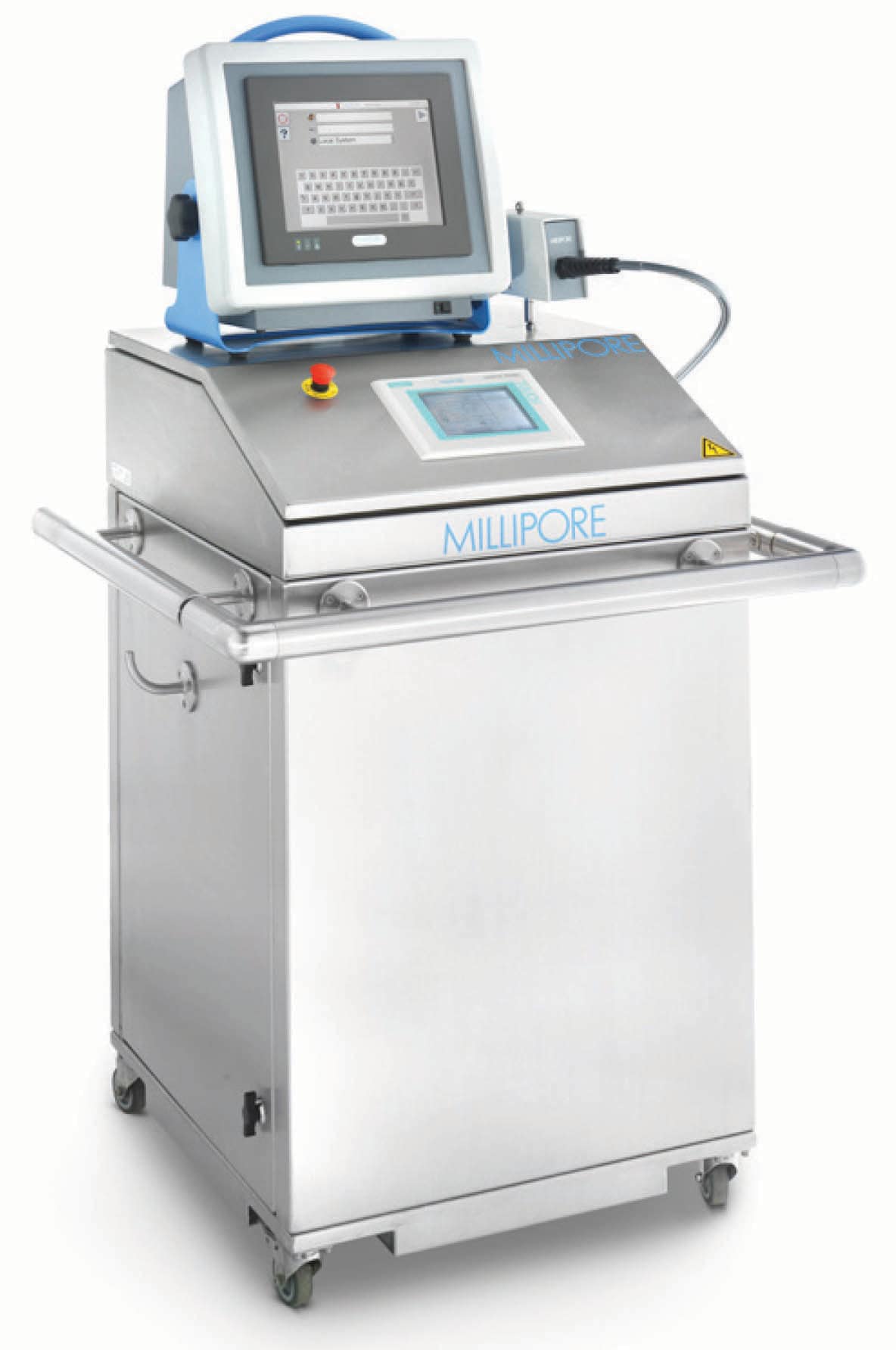

Exact-Air™ II 疏水性过滤器水基自动测试装置
基于远程容积技术，Exact-Air™ II 系统是一种自动完整性测试装置，其中间容积位于待测过滤器和测试设备之间。
通过使用 HydroCorr™ 测试方法，Exact-Air™ II 系统为用户提供了一个独特的机会来提高空气过滤器测试的可靠性、准确性、可重复性和频率，即使是在极具挑战性的操作条件下。
主要功能包括：
- 带触摸屏显示的用户友好型软件
- 控制填充、测试、排空和就地清洁操作
- 易于验证
- 亲水性过滤器的泡点和扩散测试
